Survey from any vessel of opportunity
Vessel of Opportunity Survey Kit
Rapid Mobilization Survey Kit
The VOO kit is a complete CEESCOPE™ survey system packed to travel: an RTK GNSS echo sounder, two transducers, and a Rapid Pole Set with gunwale and transom brackets that mount to almost any boat. Add the CEE PACK™ for longer days, the CEE TSF™ for side scan, an SBG IMU for heave, or the Zodiac Rapid Pole Kit for RIBs. Each part has its own case, so you take only what the job needs.
RTK
Built-in GNSS & UHF radio
200 / 33 kHz
Dual frequency transducer
No drilling
Gunwale & transom mounts
120 Wh
CEE PACK™ extended power
< 160 Wh
Every battery, airline ready
All in one system
The CEESCOPE™ puts RTK GNSS, a dual frequency echo sounder and logging in one IP67 case. Press power and depth and position are logged and output.
30 Hz
ping rate
1 cm
RTK accuracy
Add side scan
The CEE TSF™ pole mounts a StarFish side scan beside the transducer, and HYPACK® georeferences the imagery with your bathymetry.
IP67
TSF case
10 hrs
TSF battery
Power for long days
The CEE PACK™ runs and charges the CEESCOPE™ through long days on the water, and pre-heats its batteries before charging in the cold.
120 Wh
NiMH pack
12 VDC
output
Packed to fly
Every kit travels in a rugged Pelican case with custom moulding, and every battery is under 160 Wh, so the whole system can be air-shipped.
160 Wh
max per battery
Pelican
cases
Applications
Wherever the mission goes.
Built for teams that have to survey from whatever boat is available, often far from support.
Talk to us about your site →
Military & defence
Muted colours and rugged cases for operations where equipment has to deploy fast and just work.
Beach & landing approaches

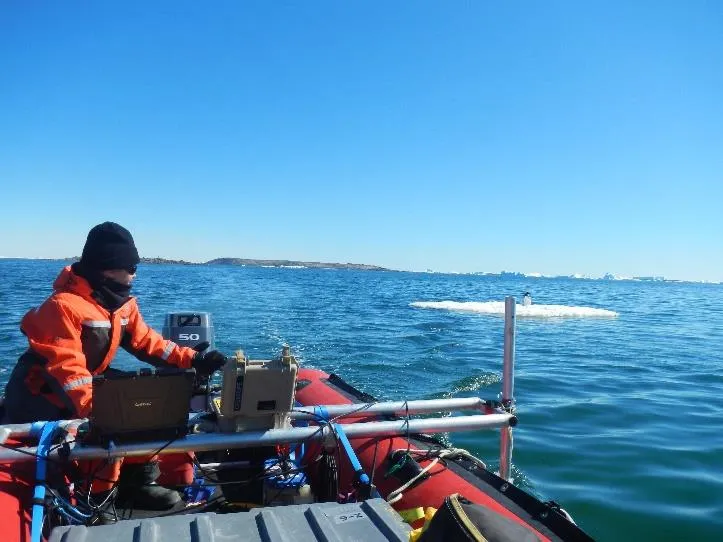

Survey approaches so landing craft can safely land and deliver supplies, as at Davis Station, Antarctica.
Polar & cold climates
The CEE PACK™ extends run time where cold reduces battery capacity, and pre-heats before charging.
Reconnaissance surveys
Combined single beam and side scan is an effective alternative to more complex multibeam equipment.
Disaster & flood response
Mobilize on a local boat and survey channels, ports and infrastructure as soon as the water allows.
Remote & fly-in sites
NiMH batteries, each under 160 Wh and fitted to its device, so the whole kit can be air-shipped.
Case histories
Proven on real surveys
Learn more
Why teams choose the Rapid Mobilization Kit
Ease of use, reliability and simplicity — with no room for equipment failures.
01 / All in one
A complete survey system in one case
The CEESCOPE™ puts RTK GNSS, a dual frequency echo sounder with full water column recording, internal and USB logging and an air-shippable NiMH battery in one IP67 case. Press power and depth and position are logged and output, with no extra radios or batteries.
RTK GNSS with a built-in UHF radio
Dual frequency 200 / 33 kHz echo sounder
Every record time-stamped by 1PPS
30 Hz
ping rate
1 cm
RTK accuracy
See the detail
Build your kit
The Rapid Mobilization Kits
Each kit is packed in a rugged Pelican case with custom moulding and brackets. Start with the survey system, then add mounting, power, side scan and heave to suit the mission.
1
Step 1 · Survey system
The core of every kit
The CEESCOPE™ and its transducers, each in their own case.

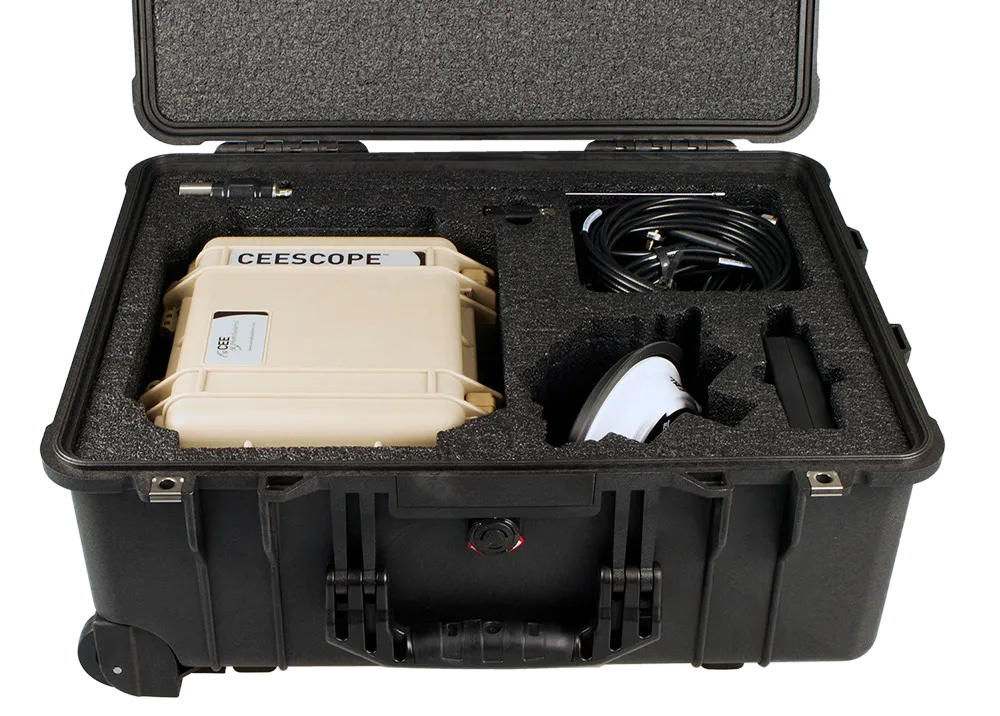

CEESCOPE™ Kit
Survey system
Includes
CEESCOPE™ unit, GNSS antenna, UHF antenna, cables, USB
Case
Pelican with foam inserts, 15.0 kg

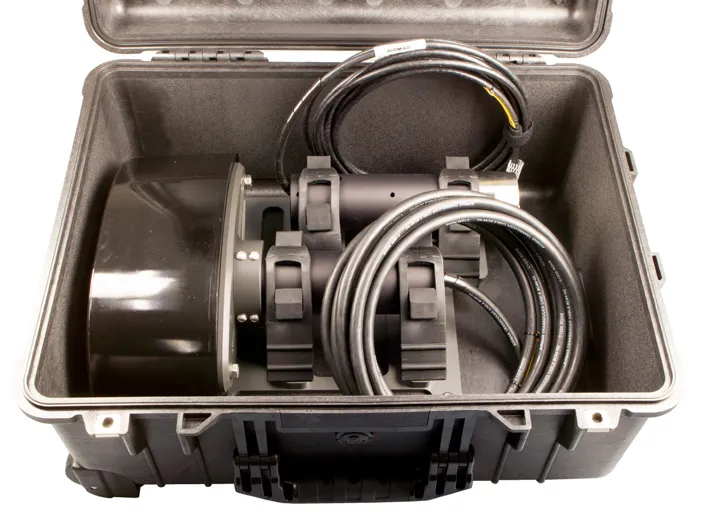

Transducer Kit
Two transducers
High frequency
SS510 200 kHz, with mounting bracket
Dual frequency
M163 combined 200 / 33 kHz, with mounting bracket
Case
Pelican with rubber clamps, 19.0 kg
2
Step 2 · Mounting
Fit it to any vessel
Brackets for the gunwale or transom, a pole set that joins to suit the boat, and a cradle for the deck.

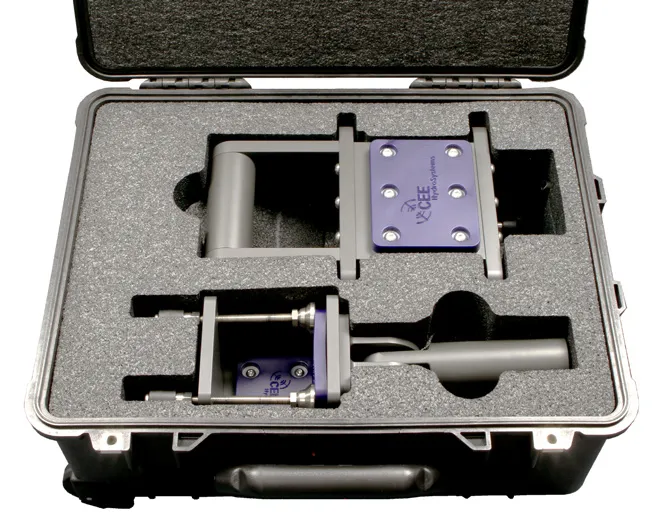

Vessel Mounting Kit
Gunwale & transom
Includes
Universal Gunwale Bracket and Universal Transom Bracket
Case
Pelican with foam inserts, 18.0 kg

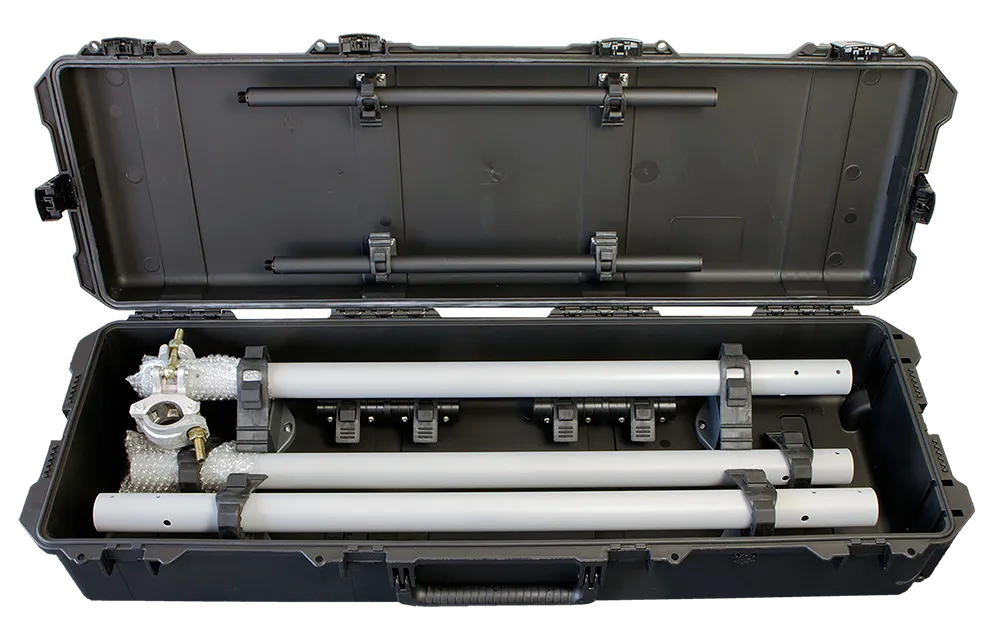

CEE RPS
Rapid Pole Set
Tube
3 × 1000 × 50 mm aluminium, 2 removable inserts
Poles
2 × 61 cm survey poles, GPS 5/8″ to 50 mm adaptor
Clamp
50 × 50 mm @ 90°
Case
Pelican with custom rubber brackets, 19.0 kg

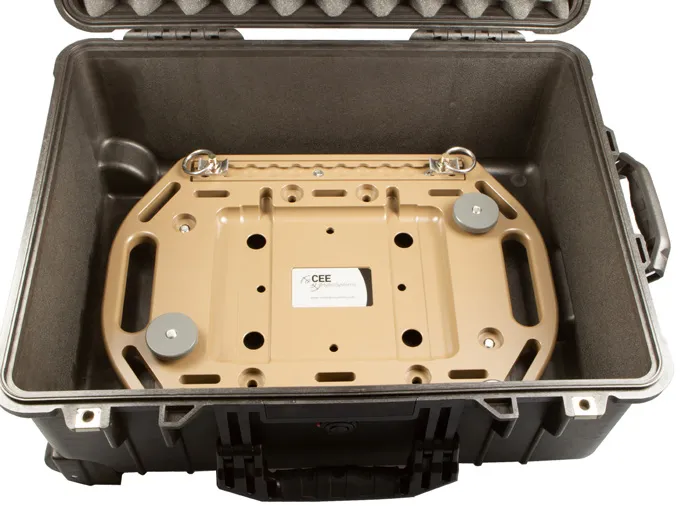

Cradle Kit
Pelican 1200 Cradle
Includes
Cradle plate and stainless steel cam buckle straps
Holds
The CEESCOPE™, or CEESCOPE™ stacked on CEE PACK™
Case
Pelican with custom brackets, 18.6 kg
3
Step 3 · Power & side scan
Go longer, see more
Add long-endurance power and a tactical side scan imaging topside.

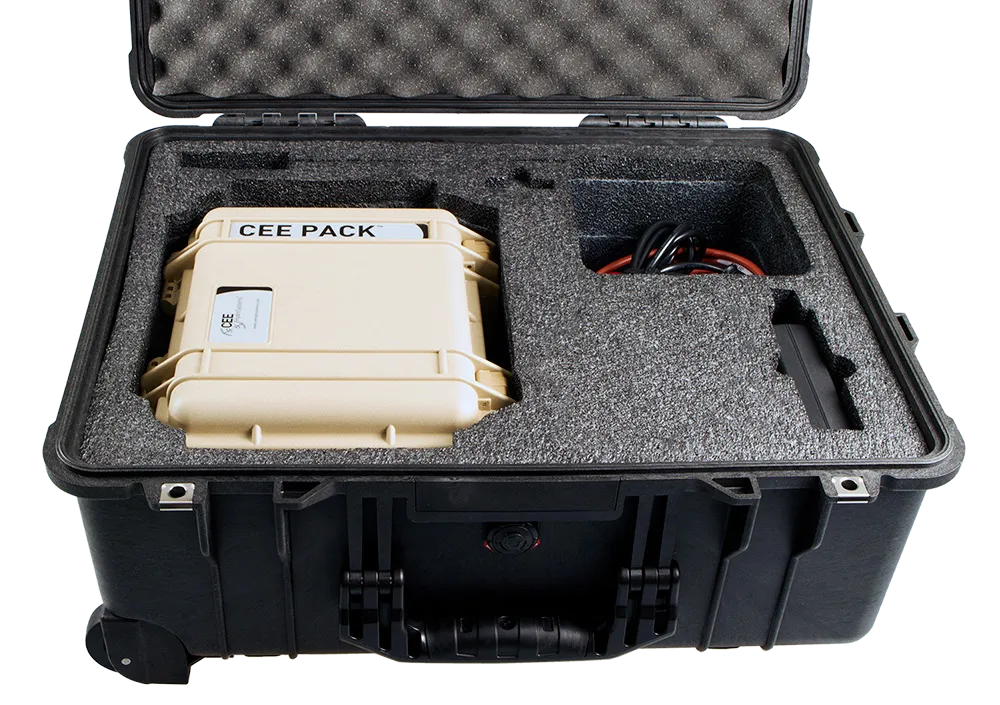

CEE PACK™ Kit
Extra power
Includes
Ruggedized rechargeable battery unit, cables
Battery
NiMH, 120 Wh
Case
Pelican with foam inserts, 12.9 kg

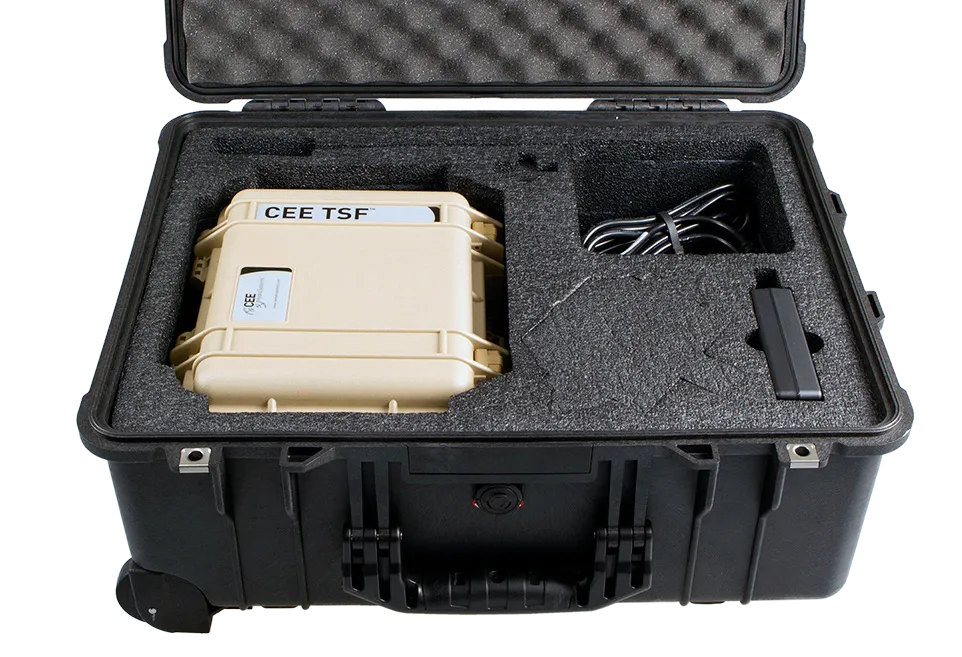

CEE TSF™ Kit
Tactical StarFish
Includes
Ruggedized StarFish interface unit, cables, interface plates
Case
Pelican with foam inserts, 12.75 kg

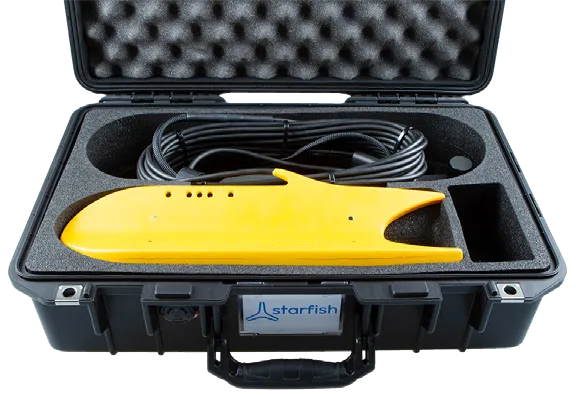

Side scan sonar
StarFish 452F
Includes
StarFish 452F side scan sonar and tow cable
Case
Pelican, 6.0 kg
4
Step 4 · Heave
Add motion compensation

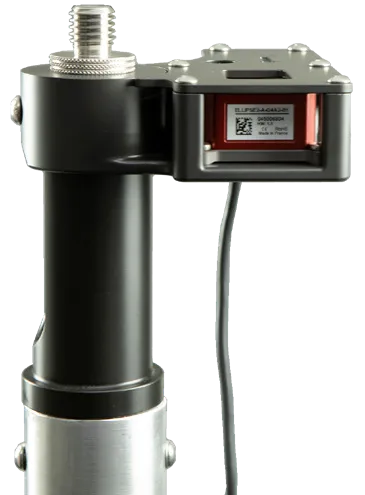

Pole mount an SBG Ellipse2-A for heave aiding, recorded with every sounding.
SBG Ellipse2-A
Heave integration
Includes
SBG Ellipse heave unit, development kit and cables, pole bracket
Sensor
High accuracy heave, P/N ELLIPSE2-A-G4A2-B1
Bracket
P/N CHS-CK-SBGTP-MB
Specifications
The kit at a glance
Case sizes and weights for travel planning, and the headline specs of each unit. Full CEESCOPE™ specs are on its own page.

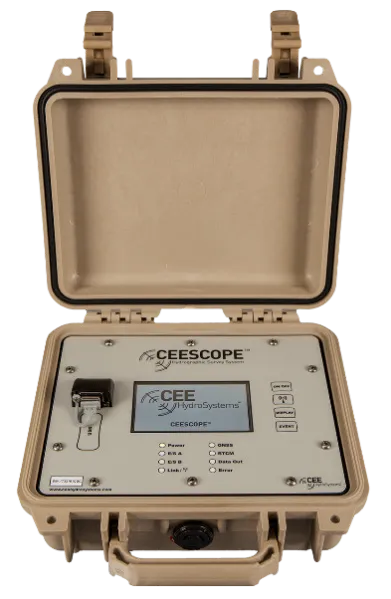

CEESCOPE™
GNSS
RTK, with built-in UHF radio · L-Band enabled
Position output
Up to 20 Hz
Echo sounder
Dual frequency 200 / 33 kHz, 30 Hz ping rate
Maximum depth
200 m
Logging
Internal and USB, 1PPS time-stamped
Connectivity
Bluetooth, industrial LAN, RS-232 on LEMO K series
Batteries
Chemistry
NiMH throughout
CEESCOPE™
60 Wh
CEE PACK™
120 Wh
Air travel
Each battery under 160 Wh, fitted to its device
Transit cases
CEESCOPE™ kit
0.56 × 0.455 × 0.265 m · 15.0 kg
CEESCOPE™ spares (inside the cradle case)
0.34 × 0.295 × 0.152 m · 3.5 kg
Transducer kit
0.56 × 0.455 × 0.265 m · 19.0 kg
CEE PACK™ kit
0.56 × 0.455 × 0.265 m · 12.9 kg
CEE TSF™ kit
0.56 × 0.455 × 0.265 m · 12.75 kg
StarFish towfish
0.487 × 0.325 × 0.175 m · 6.0 kg
Rapid Pole Set (RPS)
1.37 × 0.42 × 0.17 m · 19.0 kg
Vessel Mounting Kit
0.56 × 0.455 × 0.265 m · 18.0 kg
Pelican 1200 Cradle Kit
0.56 × 0.455 × 0.265 m · 18.6 kg

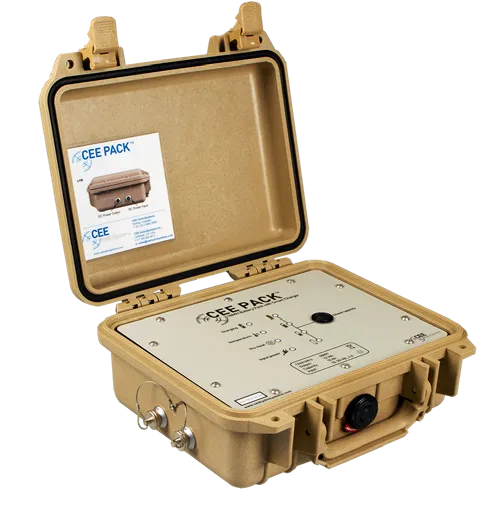

CEE PACK™
Output
12 VDC nominal, up to 4 A (48 W)
Input
10 – 30 VDC
Recharge
Approx. 6 hours with a 36 W supply
Cold weather
Battery pre-heat before charging
Options
Side scan
CEE TSF™ with StarFish 452F
Heave
SBG Ellipse2-A, pole mounted
Transducers
SS510 200 kHz and M163 200 / 33 kHz
Colour
Muted tactical finish
