CEESCOPE™
Single Beam Echo Sounder with Built-in GNSS

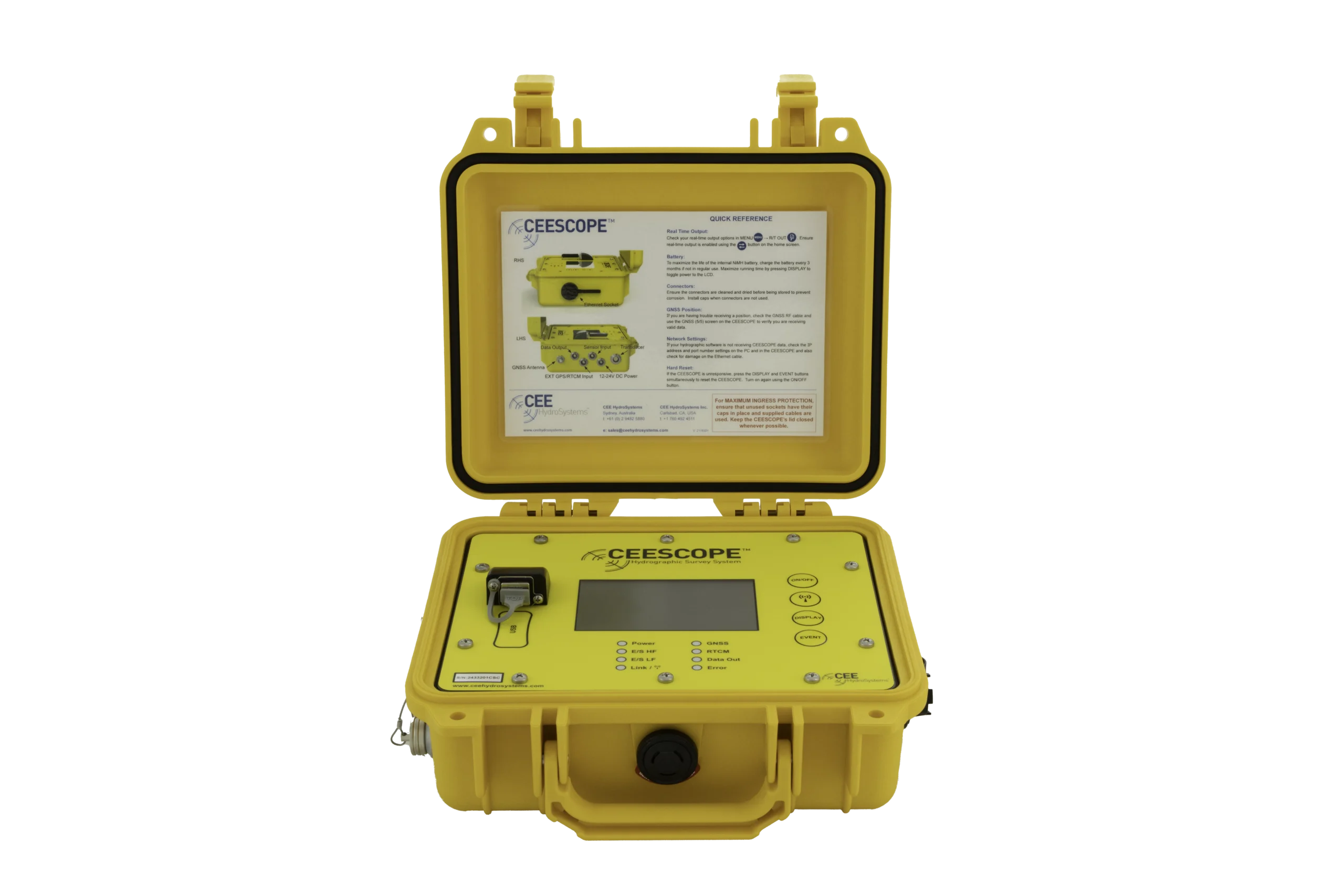

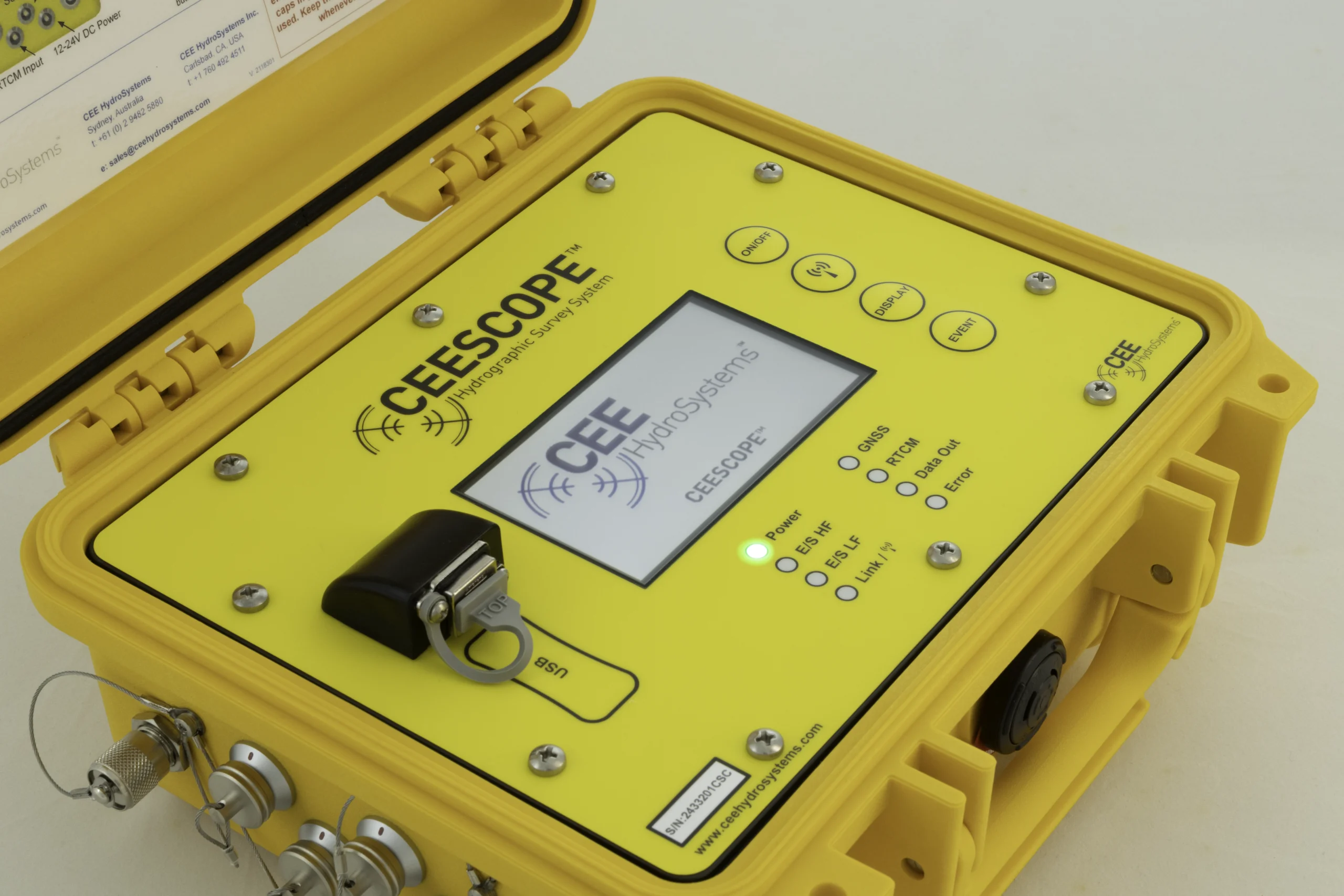

The CEESCOPE™ puts an echo sounder, an RTK GNSS receiver, a data logger and a battery in one IP67 case. Choose a Hemisphere, Trimble or NovAtel receiver with satellite, network or UHF corrections. Press power and depth (30 Hz) and position (20 Hz) are logged and output, every packet time-stamped by 1PPS. CEESCOPE™ is a state of the art portable hydrographic surveying system with advanced capabilities in a truly compact package. Coupling powerful built-in RTK GNSS with a survey grade echo sounder in a single waterproof enclosure, it represents the ultimate in shallow water single beam survey systems.
30 Hz
MAX PING RATE
3200
ECHOGRAM SAMPLES
8 hrs
BATTERY SURVEY TIME
RTK
Built-in GNSS & UHF radio
1PPS
TIME-TAGGED DATA
Everything in one case
Single beam echo sounder, RTK GNSS, data logger and battery fully integrated in one sealed waterproof case. Put it in any boat, press power and start surveying; no multiple devices to manage.
1
case
IP67
sealed
Accuracy, your way
Choose a Hemisphere, Trimble or NovAtel receiver, then RTK from a local base over the built-in UHF radio, network NTRIP, or satellite corrections with no base at all.
4
GNSS options
20 Hz
position
See the real bottom
A full 3200-sample echogram at up to 30 Hz, with a dual frequency option that sees through soft sediment and sub aquatic vegetation to the true bottom.
30 Hz
ping rate
1 cm
resolution
All day surveying
The internal battery runs a whole survey day and can travel on an aircraft. Every sounding is also logged inside the unit, so a laptop problem never costs you the data.
External
power input
128 GB
logging
Applications
One box. Any survey.
From dredge volumes and river mapping to rapid deployments, the CEESCOPE™ is proven on any boat, anywhere.
Talk to us about your site →

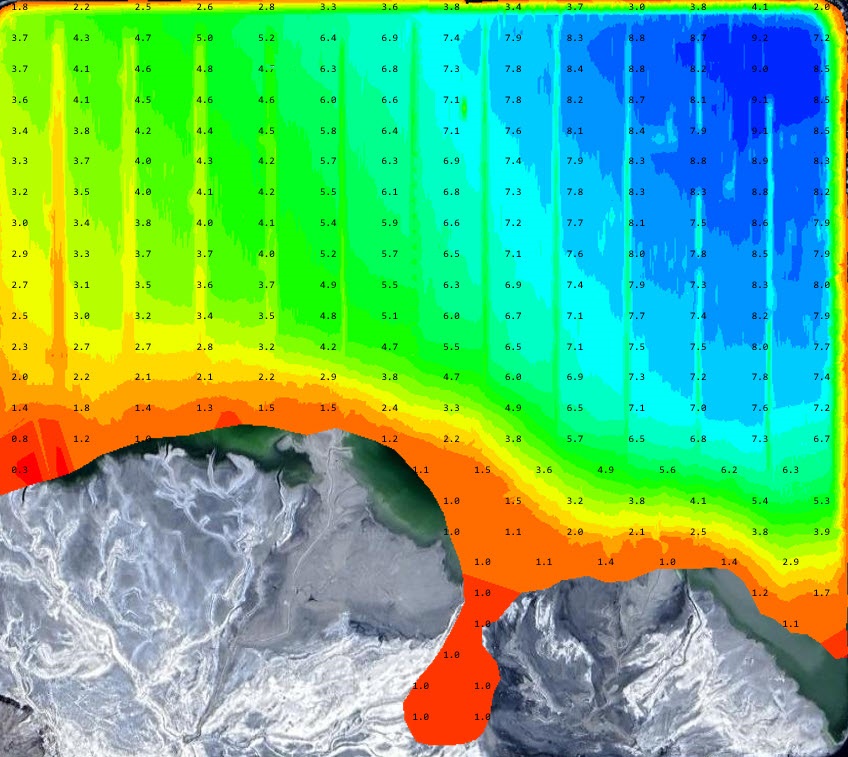

Dredging & sedimentation
Dual frequency separates the hard bottom from soft or redeposited material, with the full echogram logged for quality control.
Rivers & shallow water

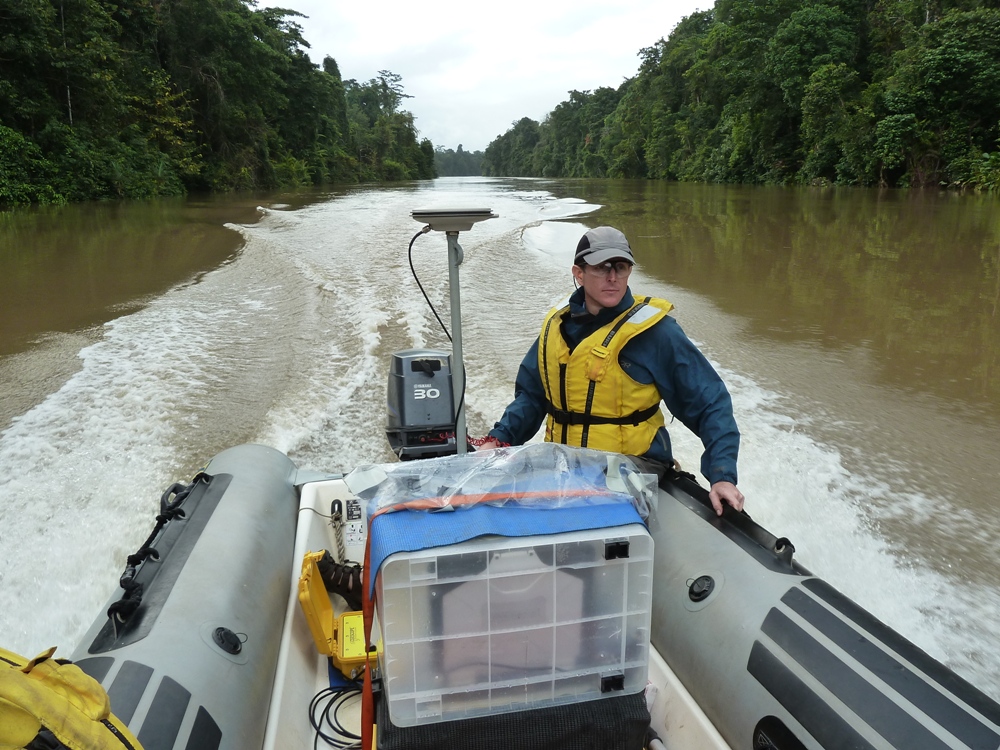

Auto Shallow mode and multi-constellation GNSS hold the bottom and the fix in 0.15 m of water or under tree canopy.
Ports, harbours & construction
RTK bathymetry that drops straight into land-survey datasets from the same base station.
Rapid mobilization
One case, no extra radios or cables and the NiMH battery flies with the crew, so the whole kit travels to site.
Navigation & charting
Map uncharted waterways with survey-grade soundings, 1PPS time-stamped to precise GNSS position.
Remote & extreme environments
IP67 case, 8-hour internal battery and internal logging for standalone work wherever the job goes.

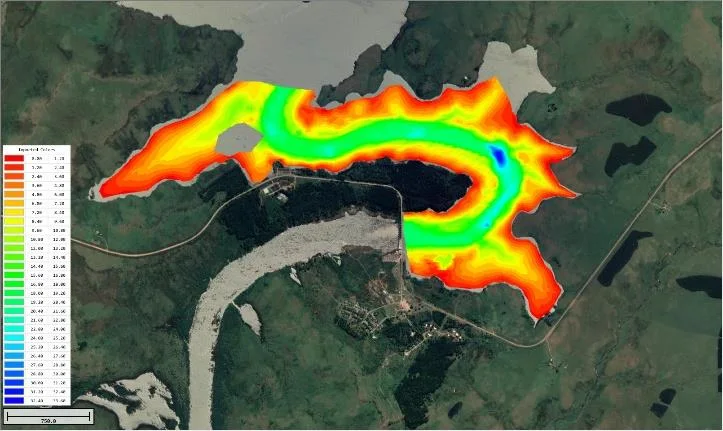

Case histories
Proven on real surveys
Learn more
Why surveyors choose CEESCOPE™
Echo sounder, GNSS receiver, data logger and battery, set up and run from one waterproof case.
01 / Why the echogram
See exceptional detail in high definition

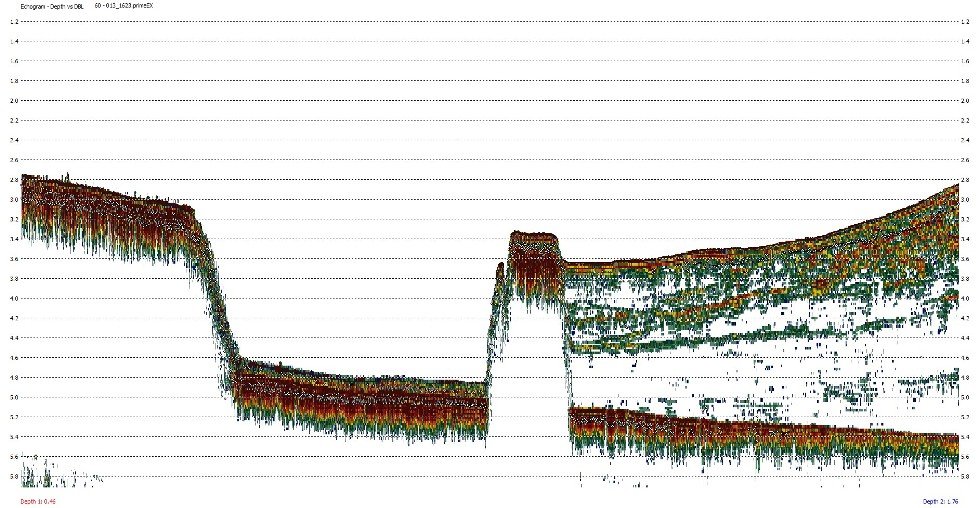

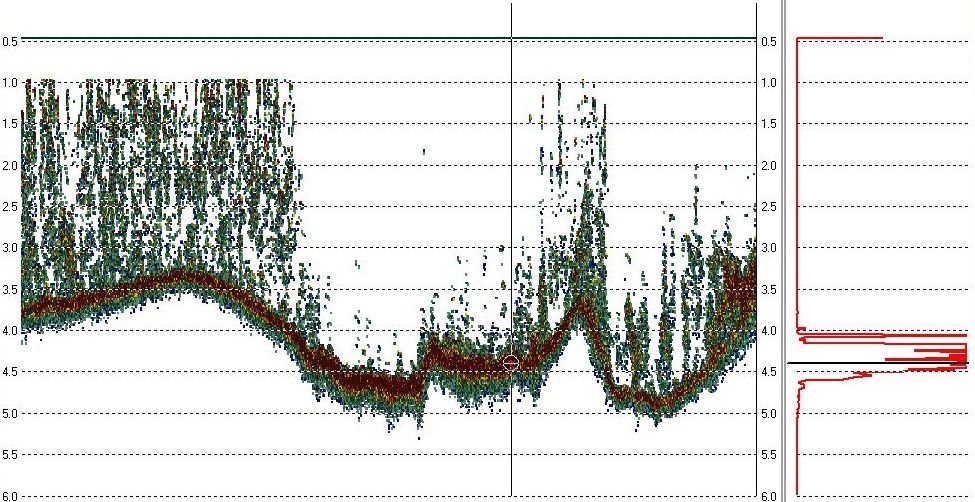

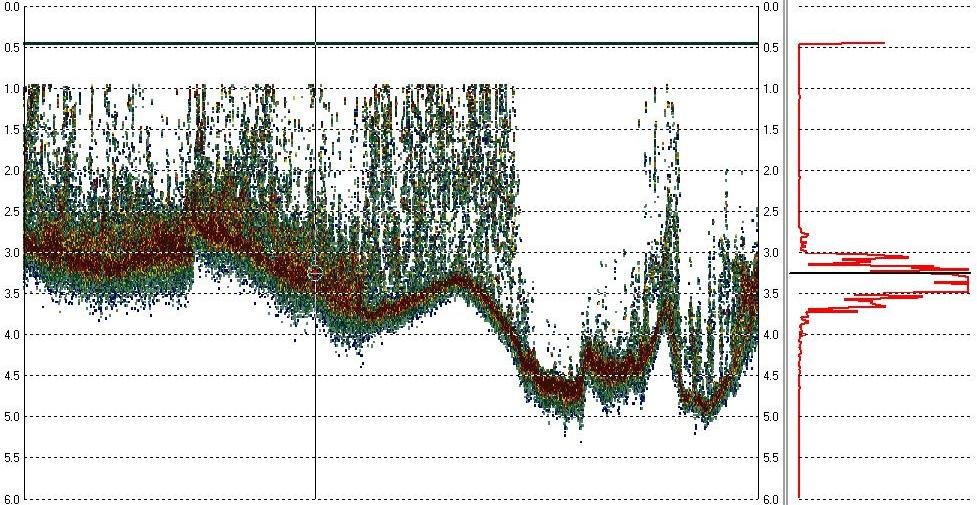

The complete sonar echo return from each ping is digitized into 3200 separate values, not just a single depth. Heavy bottom vegetation, debris and sediment can be identified on the echogram and separated from the true bottom.

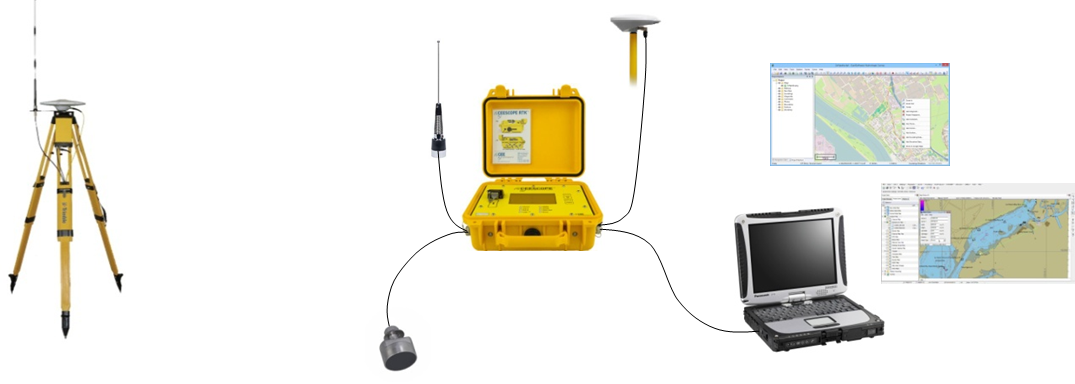

Full water column echogram in HYPACK, Hydromagic and BeamworX
High (200 kHz) or dual frequency (200 / 22–36 kHz)
Auto, Auto Shallow or Manual bottom tracking
3200
samples per ping
0.15 m
minimum depth
See the detail
Configure your system
Build your CEESCOPE™
Choose your GNSS receiver, single or dual frequency and your transducer, then how it connects and how it mounts on the boat.
1
Step 1 · GNSS receiver
Choose your internal GNSS

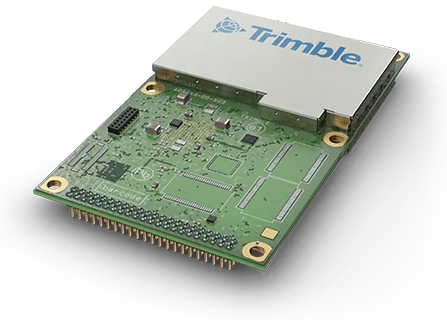

Choose a Hemisphere, Trimble or NovAtel receiver for high accuracy positioning with fewer cables and connections, then choose satellite, network (NTRIP) or UHF RTK corrections.
Hemisphere
Phantom 20
Signals
GPS, GLONASS, BeiDou L1, SBAS
Channels
800
Position output
20 Hz
Corrections
SBAS, Atlas L-Band, RTCM v2.x / v3.x
Accuracy
1.2 m autonomous · 0.5 m SBAS
Atlas L-Band (95%)
50 cm Basic · 30 cm H30 · 8 cm H10
Trimble
BD990
Signals
GPS, GLONASS, Galileo, BeiDou · L1, L2, L5, E6
Channels
336
Position output
20 Hz
Corrections
CMR, CMR+, sCMRx, RTCM v2.x / v3.x, RTX
RTK
0.008 m (H) / 0.015 m (V)
Technology
Maxwell™ 7, ProPoint
Trimble

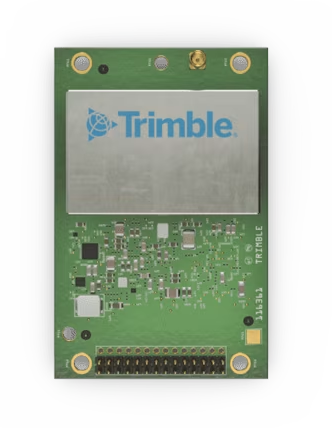

BD9250
Signals
GPS, GLONASS, Galileo, BeiDou · L1, L2 or L5
Channels
336
Position output
10 Hz
Corrections
CMR, CMR+, sCMRx, RTCM v2.x / v3.x
RTK
0.008 m (H) / 0.015 m (V)
CenterPoint RTX
0.02 m (H) / 0.05 m (V)
NovAtel
OEM729
Signals
GPS, GLONASS, Galileo, BeiDou · L1/L2/E1/E5b/B1/B2
Channels
555
Position output
20 Hz
Corrections
CMR, CMR+, RTCM v2.x / v3.x
RTK
0.01 m + 1 ppm
TerraStar-C PRO
0.02 m
All receivers are L-Band enabled. Position output is activated at 20 Hz (10 Hz on the BD9250). Ask us if you need a higher rate. RTK corrections come from a network (NTRIP) through the Ethernet port, or a local base over the optional internal UHF receiver (403 – 473 MHz).
Not sure which receiver? See the buying guide
2
Step 2 · Frequency
Single or dual frequency?
Single frequency 200 kHz suits most surveys. Add a low frequency channel when soft sediment hides the real bottom.
Standard
Single frequency
200 kHz
Frequency
190 – 210 kHz
Depth range
0.15 – 200 m (0.5 – 656 ft)
Transducers
SS510, SS549
Upgrade
Dual frequency
Soft or disturbed sediment
Frequencies
200 kHz + 22 – 36 kHz
Depth range (LF)
0.75 – 200 m (2.5 – 656 ft)
Transducers
M163, M195, M563
Single or dual frequency? See the buying guide
3
Step 3 · Transducer
Choose your transducer
A range of high frequency (200 kHz) and dual frequency (200 / 33 / 24 kHz) transducers, from general and engineering surveys to looking into soft sediment.
General surveys · single frequency
SS510
Frequency
200 kHz
Beam width
8°
RMS power
500 W
Cable length
9 m (30 ft)
Weight
1.3 kg (3 lbs)
Engineering surveys · single frequency
SS549
Frequency
200 kHz
Beam width
3°
RMS power
3 kW
Cable length
10 m (33 ft)
Weight
5.5 kg (11.6 lbs)
Dual frequency · 200 / 33 kHz
M163
Frequency
200 / 33 kHz
Beam width
8° / 19°
RMS power
500 W / 1 kW
Cable length
11 m (36 ft)
Weight
9 kg (19.8 lbs)
Dual frequency · USV
M195
Frequency
200 / 33 kHz
Beam width
8° / 25°
RMS power
500 W / 500 W
Cable length
11 m (36 ft)
Weight
3.6 kg (8 lbs)
Broadband · 200 / 33 / 24 kHz
M563
Frequency
200 / 33 / 24 kHz
Beam width
4° / 19° / 24°
Already have a transducer?
Bring your own
Connection
LEMO 2K 6-pin
Talk to us
Send us the make and model and we’ll confirm it works
Dual frequency (200 / 22–36 kHz) gives greater penetration through loose sediment, sludge and silt. Transducers mount on 50 mm / 2″ tubes or 5/8″ thread survey poles.
4
Step 4 · Connectivity
Bluetooth, UHF or Wi-Fi?
Every CEESCOPE™ has Bluetooth. Add the internal UHF radio for RTK from a local base, or choose the CEESCOPE-R™ for jet ski installations.
Standard
Bluetooth
Built in
Range
0 – 50 m
Output
Depth + position
Input
External GNSS
Downloads
Learn how to configure the CEESCOPE™ to output and receive data using its built-in Bluetooth radio.
Download
Option
UHF radio
RTK from a local base
Radio
Internal Satel
Band
403 – 473 MHz
Network RTK
NTRIP via Ethernet
Variant

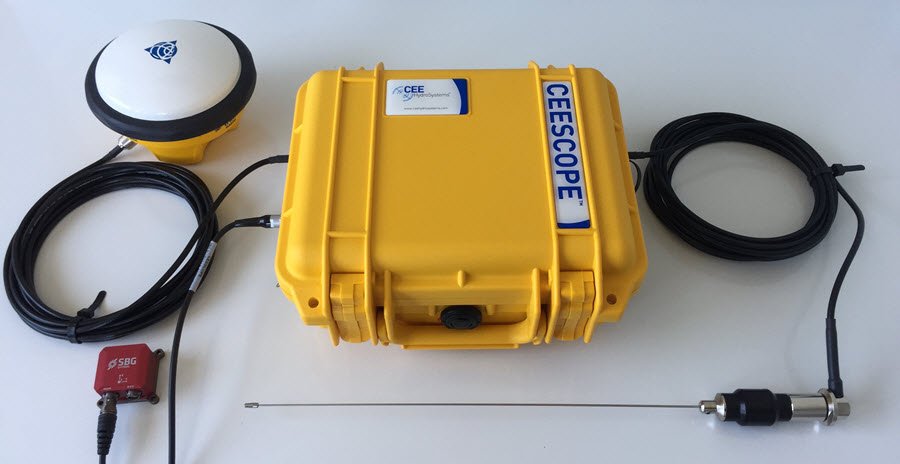

CEESCOPE-R™
Jet ski & small craft
Wi-Fi
On-board devices
Motion
IMU input
GNSS
All RTK modes
About the CEESCOPE-R™
Every CEESCOPE™ also outputs data over RS-232 and Ethernet. Full connector details are in the specifications below.
5
Step 5 · Mounting

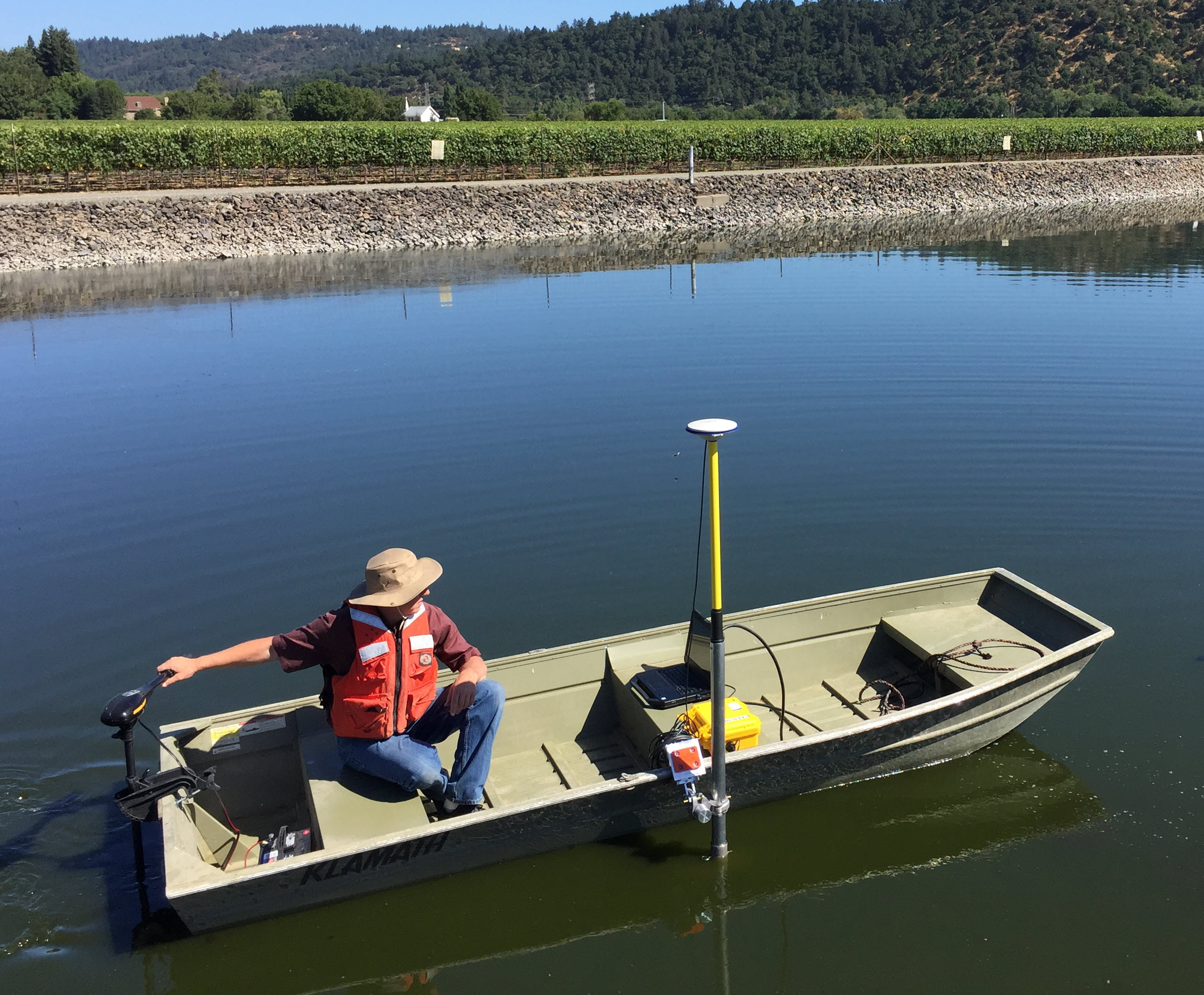

Mounting hardware
The basics to put the transducer and GNSS antenna on one pole over the side of the boat, in a heavy duty or a lightweight series, plus transit cases to carry it all. Tell us about your boat and we’ll suggest the right kit.

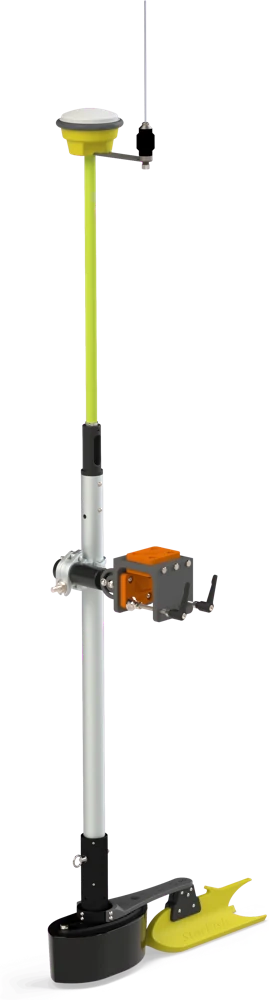

2″ (50 mm) pole series
Heavy duty series
The Universal Gunwale Bracket with a 2″ aluminium pole and transducer bracket. Tilt adjustable, with extension kits for wider gunwales.

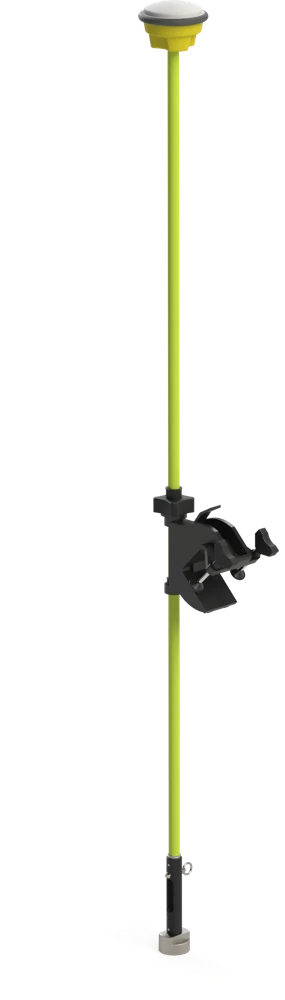

5/8″ survey pole series
Lightweight series
Light weight and durable, for quick and easy assembly on a variety of small water craft.
Travel ready

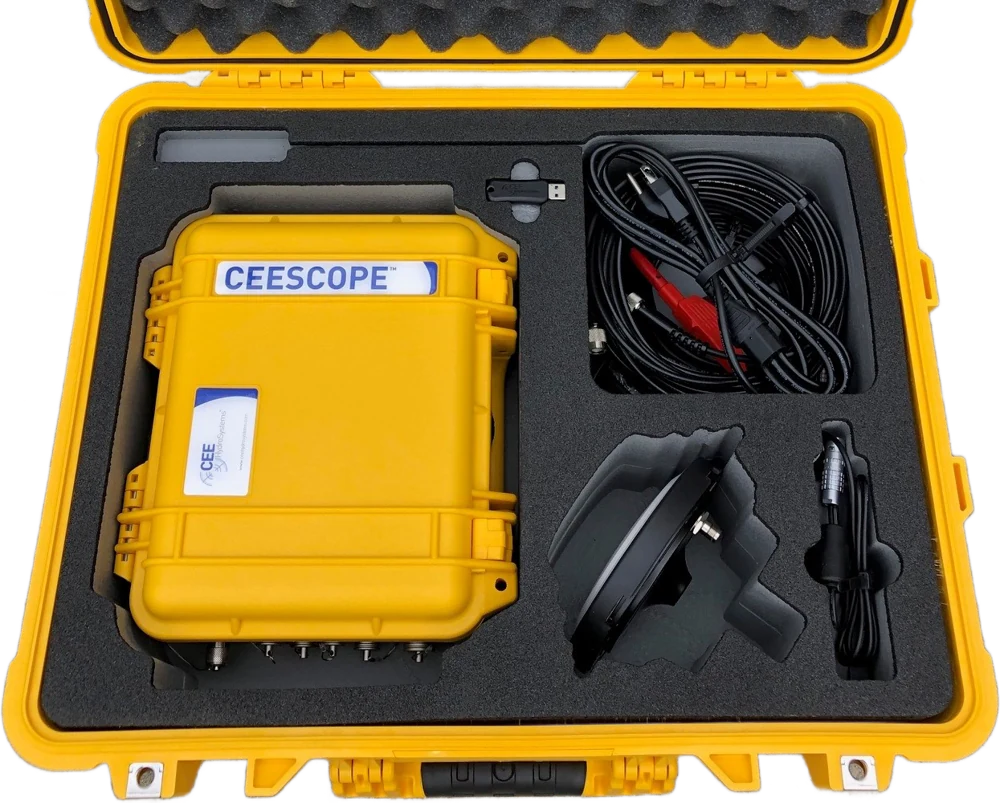

Transit cases
Rugged hard cases for the CEESCOPE™ and its transducer, so the whole kit travels protected.
Product videos
See the CEESCOPE™ at work
See more videos
Ultimate Convenience: Setting up the RTK CEESCOPE™
CEE ECHO™ and CEESCOPE™ versus Basic Echo Sounder: Get the …
Dredging Survey in the Maldives
Extreme Shallow Survey – 200 kHz
Obtain Defensible Data: See what Really Lies Below
Specifications
The numbers that matter
Headline specs below. Open the full list for connections, communications, transducers and GNSS receivers.
Physical
Dimensions
30.0 × 25.0 × 13.8 cm (W × D × H) · 11.81 × 9.84 × 5.43 in
Weight
3.65 kg (8.05 lbs)
Environmental
Operating range
0°C – 50°C (32°F – 122°F)
Humidity
95% non-condensing
Ingress protection
IP67
Power
Power consumption
7.2 W (approx. 8 hours operating time)
Internal battery
Rechargeable, high-capacity NiMH 10 Ah
Input supply range
11.0 – 33.6 VDC
External power supply
Nominal 12 VDC @ 2 A (9 – 30 VDC range)
Transmit power
172 W RMS (200 kHz and 22 – 36 kHz)
Antenna voltage output
5.0 VDC (nominal)
Data logging and output
Internal logging
128 GB
External logging
USB-A drive
Real-time output
RS-232, Ethernet or Bluetooth
Echogram
3200 spp full water column acoustic envelope
Compatible software
HYPACK, Hydromagic, Qinsy, Beamworx
Output formats
NMEA GGA, VTG, DBS, DBT · ODOM SBT / DBT · ATLAS DESO 25
Echo sounder
Operating modes
Auto, Auto Shallow or Manual
Channels
2
Depth range (HF 200 kHz)
0.15 – 200 m (0.5 – 656 ft)
Depth range (LF 22–36 kHz)
0.75 – 200 m (2.5 – 656 ft)
Ping rate
1 – 30 Hz, depth dependent
Frequency range (HF)
190 – 210 kHz
Frequency range (LF)
22 – 36 kHz
Accuracy
1 cm ± 0.1% of depth
Depth resolution
1 cm
Pulse length
HF 1 – 35, LF 1 – 30 cycles
TVG
None, LOG 10, LOG 20
Manual gain
30 – 100%
Sound velocity range
1350 – 1750 m/s (4,429 – 5,741 ft/s), 1 m/s resolution
Draft and index
0 – 10 m (1 cm increments)
Manual detection threshold
1 – 50%
Blanking range
HF 0.07 – 5 m · LF 0.05 – 10 m
