The whole CEESCOPE, in an even smaller footprint

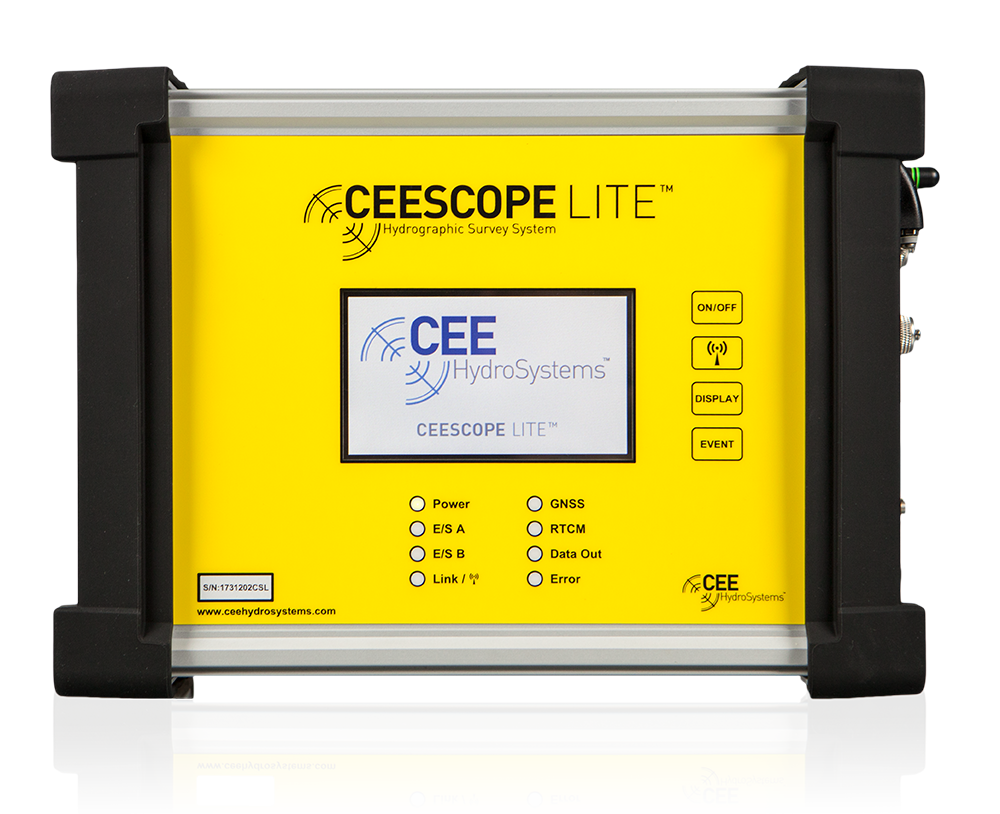

CEESCOPE LITE™
Single Beam Echo Sounder with Built-in GNSS
The CEESCOPE LITE™ puts the CEESCOPE’s echo sounder, RTK GNSS receiver and data logger in a slim 9.2 cm IP67 enclosure, built for USVs, remote-controlled boats and dedicated survey vessels where space is tight. Every connection is on one end panel, and two LAN ports can power PoE devices. Depth at 30 Hz and position at up to 20 Hz are logged and output, every packet time-stamped by 1PPS.
9.2 cm
Slim enclosure
30 Hz
Ping rate
RTK
Built-in GNSS & UHF radio
2 × PoE
LAN ports
IP67
Waterproof enclosure
Made to be built in

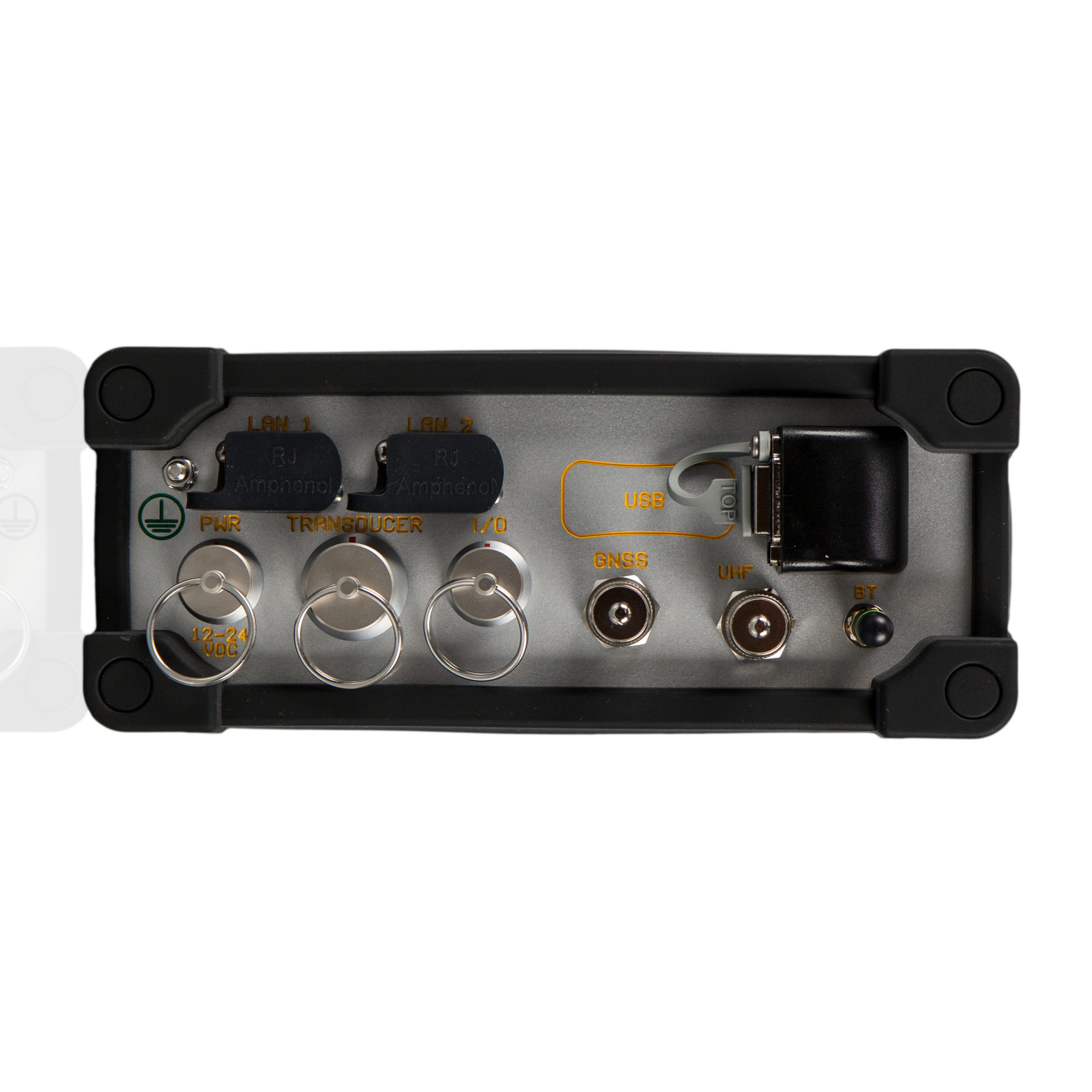

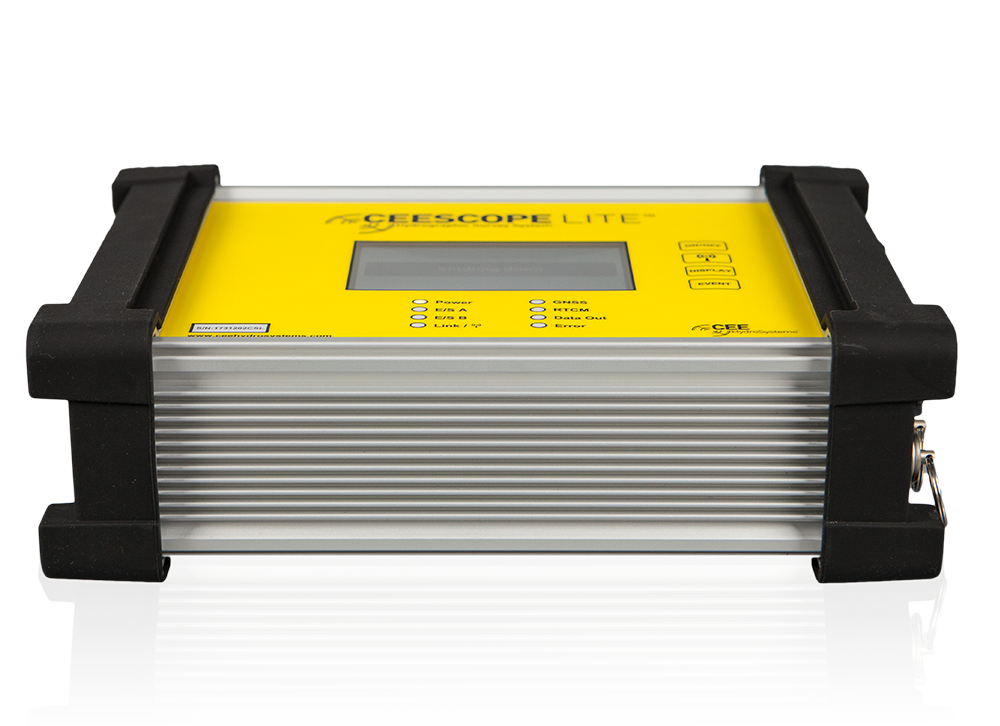

A slim enclosure with every connection on one end panel designed to drop into USVs, launches and fixed installations.
1
end panel
IP67
sealed
RTK built in
Single beam echo sounder, RTK GNSS and logger in one unit, with an optional UHF radio: one box to mount instead of a stack.
RTK
built in
20 Hz
position
Power on board
Both LAN ports supply PoE for a camera or radio link, and it runs straight from vessel power: no battery to charge.
2
PoE ports
0
batteries
See the real bottom
A full 3200-sample echogram at up to 30 Hz, with 128 GB of internal logging and a USB dock for quick data transfer.
30 Hz
ping rate
128 GB
logging
Applications
Built in, out of the way.
For USVs, remote-controlled boats and dedicated survey launches, the CEESCOPE LITE™ puts a complete survey system where space is tight.
Talk to us about your site →
USVs & remote-controlled boats
A slim enclosure and one end panel make for a tidy install, with PoE for a camera or a radio link to shore.
Dredging & sedimentation
Dual frequency separates the hard bottom from soft or redeposited material, with the full echogram logged for quality control.
Rivers & shallow water
Auto Shallow mode and multi-constellation GNSS hold the bottom and the fix in 0.15 m of water or under tree canopy.
Ports, harbours & construction
RTK bathymetry that drops straight into land-survey datasets from the same base station.
Dedicated survey launches
Install once on vessel power and survey every day, with internal logging and an IP67 enclosure.
Navigation & charting
Map uncharted waterways with survey-grade soundings, 1PPS time-stamped to precise GNSS position.

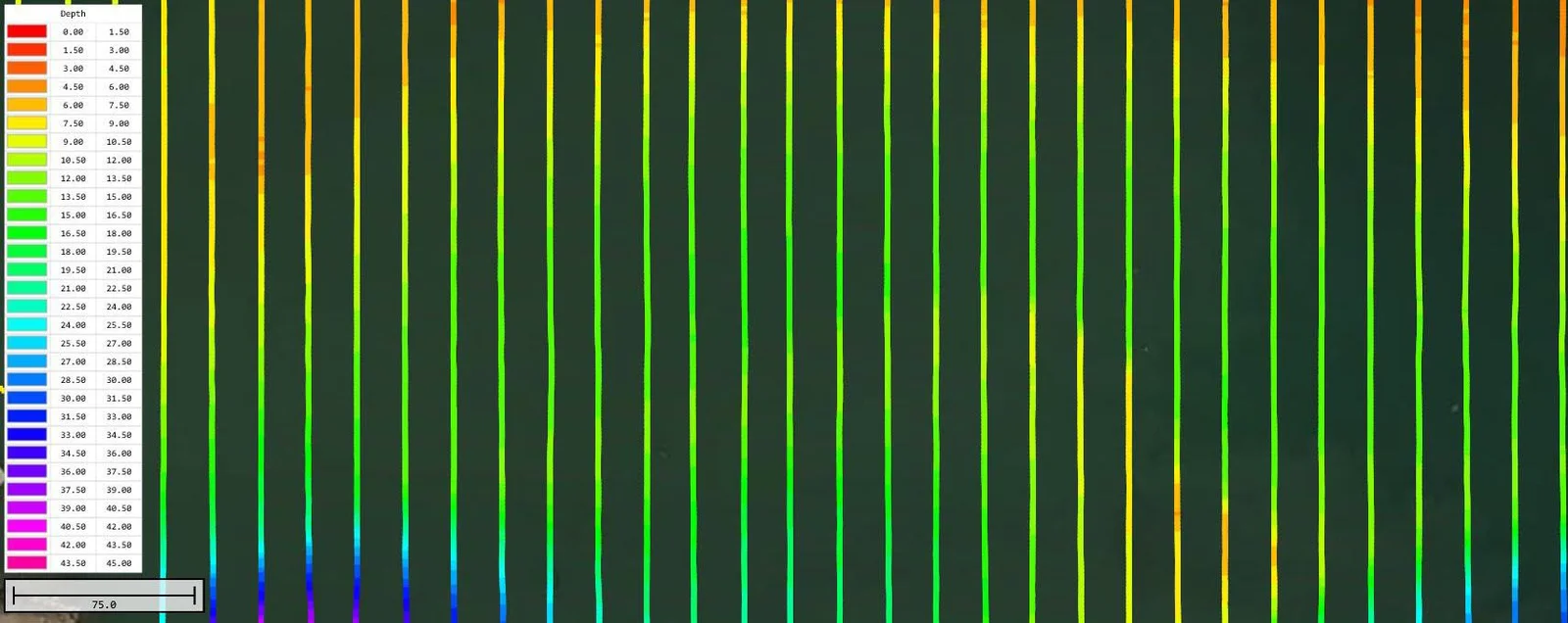

Case histories
Proven on real surveys
Learn more
Why surveyors choose CEESCOPE LITE™
Echo sounder, GNSS receiver, data logger and battery — in a compact enclosure made for permanent and remote-controlled installs.
01 / Why the echogram
See exceptional detail in high definition

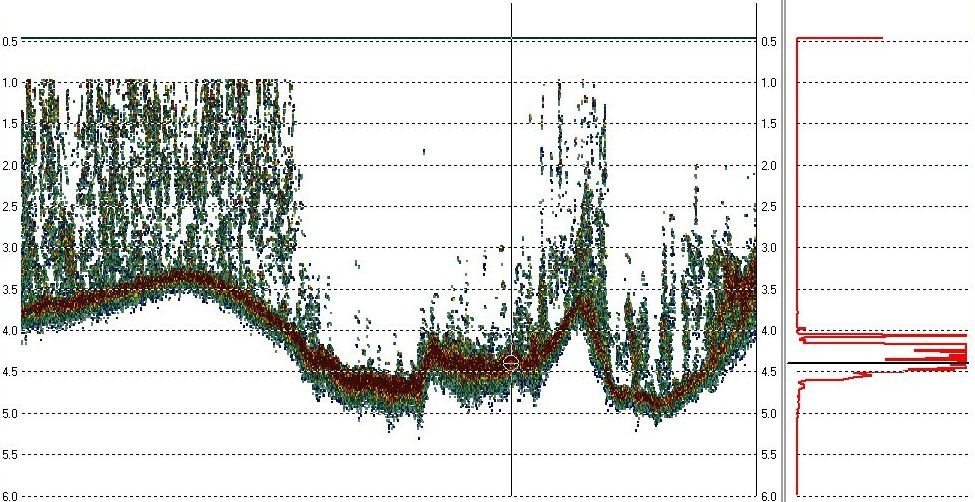

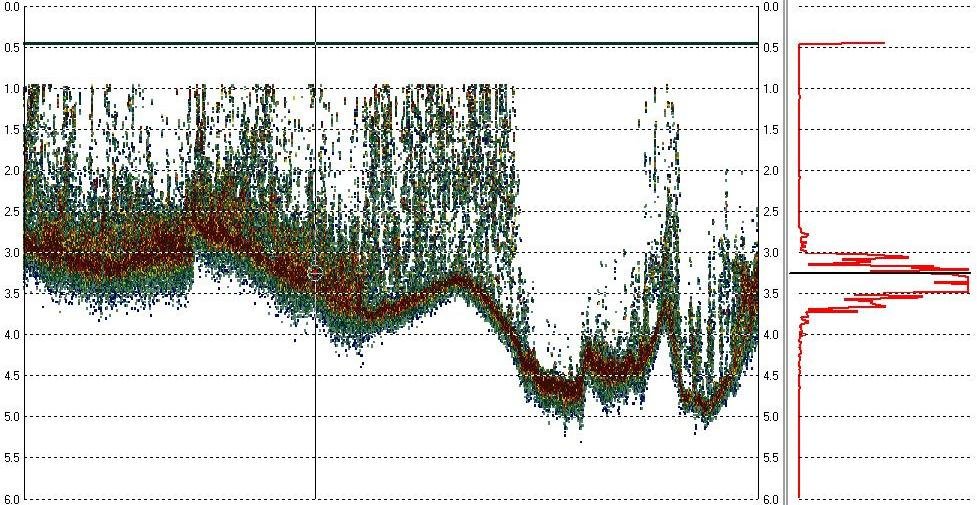

The complete sonar echo return from each ping is digitized into 3200 separate values, not just a single depth. Heavy bottom vegetation, debris and sediment can be identified on the echogram and separated from the true bottom.
Full water column echogram in HYPACK, Hydromagic and BeamworX
High (200 kHz) or dual frequency (200 / 22–36 kHz)
Auto, Auto Shallow or Manual bottom tracking
3200
samples per ping
0.15 m
minimum depth
See the detail
Configure your system
Build your CEESCOPE LITE™
Choose your GNSS receiver, single or dual frequency and your transducer, then the mounting hardware for your boat.
1
Step 1 · GNSS receiver
Choose your internal GNSS
Choose a Hemisphere, Trimble or NovAtel receiver for high accuracy positioning with fewer cables and connections, then choose satellite, network (NTRIP) or UHF RTK corrections.
Hemisphere
Phantom 20
Signals
GPS, GLONASS, BeiDou L1, SBAS
Channels
800
Position output
20 Hz
Corrections
SBAS, Atlas L-Band, RTCM v2.x / v3.x
Accuracy
1.2 m autonomous · 0.5 m SBAS
Atlas L-Band (95%)
50 cm Basic · 30 cm H30 · 8 cm H10
Trimble
BD990
Signals
GPS, GLONASS, Galileo, BeiDou · L1, L2, L5, E6
Channels
336
Position output
20 Hz
Corrections
CMR, CMR+, sCMRx, RTCM v2.x / v3.x, RTX
RTK
0.008 m (H) / 0.015 m (V)
Technology
Maxwell™ 7, ProPoint
Trimble
BD9250
Signals
GPS, GLONASS, Galileo, BeiDou · L1, L2 or L5
Channels
336
Position output
10 Hz
Corrections
CMR, CMR+, sCMRx, RTCM v2.x / v3.x
RTK
0.008 m (H) / 0.015 m (V)
CenterPoint RTX
0.02 m (H) / 0.05 m (V)
NovAtel
OEM729
Signals
GPS, GLONASS, Galileo, BeiDou · L1/L2/E1/E5b/B1/B2
Channels
555
Position output
20 Hz
Corrections
CMR, CMR+, RTCM v2.x / v3.x
RTK
0.01 m + 1 ppm
TerraStar-C PRO
0.02 m
All receivers are L-Band enabled. Position output is activated at 20 Hz (10 Hz on the BD9250). Ask us if you need a higher rate. RTK corrections come from a network (NTRIP) through the Ethernet port, or a local base over the optional internal UHF receiver (403 – 473 MHz).
Not sure which receiver? See the buying guide
2
Step 2 · Frequency
Single or dual frequency?
Single frequency 200 kHz suits most surveys. Add a low frequency channel when soft sediment hides the real bottom.
Standard
Single frequency
200 kHz
Frequency
190 – 210 kHz
Depth range
0.15 – 200 m (0.5 – 656 ft)
Transducers
SS510, SS549
Upgrade
Dual frequency

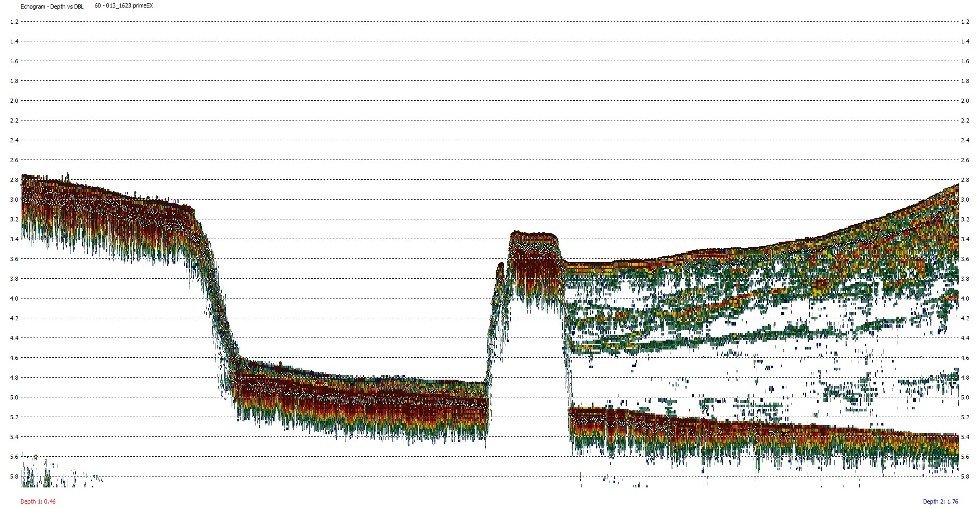

Soft or disturbed sediment
Frequencies
200 kHz + 22 – 36 kHz
Depth range (LF)
0.75 – 200 m (2.5 – 656 ft)
Transducers
M163, M195, M563
Single or dual frequency? See the buying guide
3
Step 3 · Transducer
Choose your transducer
A range of high frequency (200 kHz) and dual frequency (200 / 33 / 24 kHz) transducers, from general and engineering surveys to looking into soft sediment.
General surveys · single frequency
SS510
Frequency
200 kHz
Beam width
8°
RMS power
500 W
Cable length
9 m (30 ft)
Weight
1.3 kg (3 lbs)
Engineering surveys · single frequency
SS549
Frequency
200 kHz
Beam width
3°
RMS power
3 kW
Cable length
10 m (33 ft)
Weight
5.5 kg (11.6 lbs)
Dual frequency · 200 / 33 kHz
M163
Frequency
200 / 33 kHz
Beam width
8° / 19°
RMS power
500 W / 1 kW
Cable length
11 m (36 ft)
Weight
9 kg (19.8 lbs)
Dual frequency · USV
M195
Frequency
200 / 33 kHz
Beam width
8° / 25°
RMS power
500 W / 500 W
Cable length
11 m (36 ft)
Weight
3.6 kg (8 lbs)
Broadband · 200 / 33 / 24 kHz
M563
Frequency
200 / 33 / 24 kHz
Beam width
4° / 19° / 24°
Already have a transducer?
Bring your own
Connection
LEMO 2K 6-pin
Talk to us
Send us the make and model and we’ll confirm it works
Dual frequency (200 / 22–36 kHz) gives greater penetration through loose sediment, sludge and silt. Transducers mount on 50 mm / 2″ tubes or 5/8″ thread survey poles.
4
Step 4 · Mounting
Mounting hardware
The basics to put the transducer and GNSS antenna on one pole over the side of the boat, in a heavy duty or a lightweight series, plus transit cases to carry it all. Tell us about your boat and we’ll suggest the right kit.
2″ (50 mm) pole series
Heavy duty series
The Universal Gunwale Bracket with a 2″ aluminium pole and transducer bracket. Tilt adjustable, with extension kits for wider gunwales.
5/8″ survey pole series
Lightweight series
Light weight and durable, for quick and easy assembly on a variety of small water craft.
Travel ready
Transit cases
Rugged hard cases for the CEESCOPE LITE™ and its transducer, so the whole kit travels protected.
Specifications
The numbers that matter
Headline specs below. Open the full list for connections, communications, transducers and GNSS receivers.
Physical
Dimensions
31.0 × 21.5 × 9.2 cm (L × W × D) · 12.2 × 8.46 × 3.62 in
Weight
3.45 kg (7.6 lbs)
Environmental
Operating range
0°C – 50°C (32°F – 122°F)
Humidity
95% non-condensing
Ingress protection
IP67
Power
Power consumption
7.2 W typical
Internal battery
Rechargeable NiMH, 3 Ah, for short-term self-contained operation
External power supply
Nominal 12 VDC @ 2 A (9 – 30 VDC range)
Transmit power
172 W RMS (200 kHz and 22 – 36 kHz)
Antenna voltage output
5.0 VDC (nominal)
Data logging and output
Internal logging
128 GB
External logging
IP67 USB-A dock (tested to 64 GB)
Real-time output
RS-232, Ethernet or Bluetooth
Echogram
3200 spp full water column acoustic envelope
Compatible software
HYPACK, Hydromagic, Qinsy, Beamworx
Output formats
NMEA GGA, VTG, DBS, DBT · ODOM SBT / DBT · ATLAS DESO 25
Echo sounder
Operating modes
Auto, Auto Shallow or Manual
Channels
2
Depth range (HF 200 kHz)
0.15 – 200 m (0.5 – 656 ft)
Depth range (LF 22–36 kHz)
0.75 – 200 m (2.5 – 656 ft)
Ping rate
1 – 30 Hz, depth dependent
Frequency range (HF)
190 – 210 kHz
Frequency range (LF)
22 – 36 kHz
Accuracy
1 cm ± 0.1% of depth
Depth resolution
1 cm
Pulse length
HF 1 – 35, LF 1 – 30 cycles
TVG
None, LOG 10, LOG 20
Manual gain
30 – 100%
Sound velocity range
1350 – 1750 m/s (4,429 – 5,741 ft/s), 1 m/s resolution
Draft and index
0 – 10 m (1 cm increments)
Manual detection threshold
1 – 50%
Blanking range
HF 0.7 – 5 m · LF 0.5 – 10 m
