CEE-LINE™ for trustworthy shallow water bridge scour surveys in Germany
After several basic pole mounted echo sounders fell short, Ingenieurbüro Saam GmbH in Upper Bavaria adopted the CEE-LINE™ for bridge scour and river surveys in the Trimble Access environment. Datasets were consistent, repeatable and trustworthy, with consistent depths in very shallow water even near bridge structures.
At a glance
- Client
- Ingenieurbüro Saam GmbH
- Location
- Upper Bavaria, Southern Germany
- Application
- Bridge scour and shallow water hydrographic surveys
- Equipment

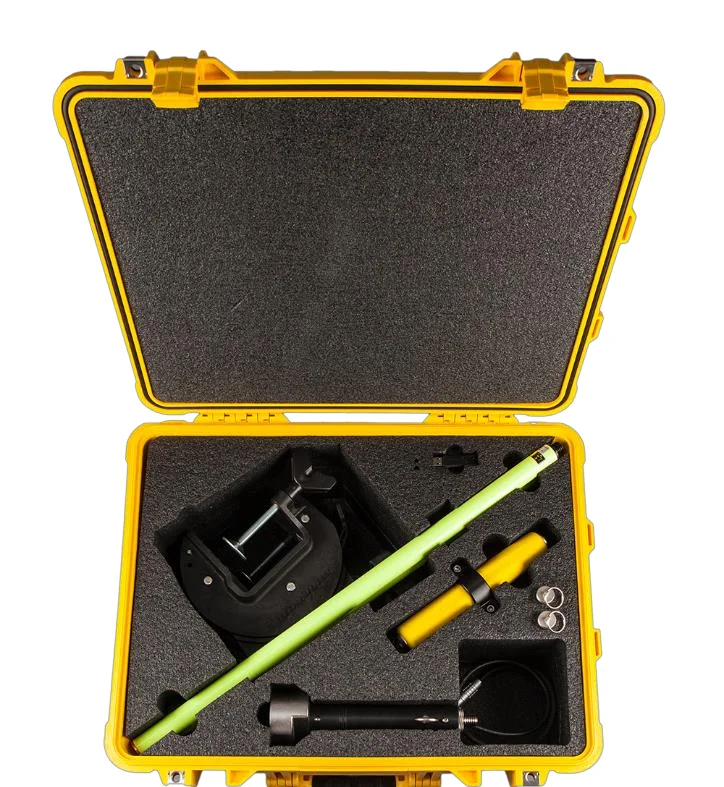

- CEE-LINE™ echo sounder with pole mount kit, on an electric inflatable boat
- GNSS and software
- Trimble GNSS and Trimble S7 total station, Trimble Access™ on a TSC3 data collector
About Ingenieurbüro Saam

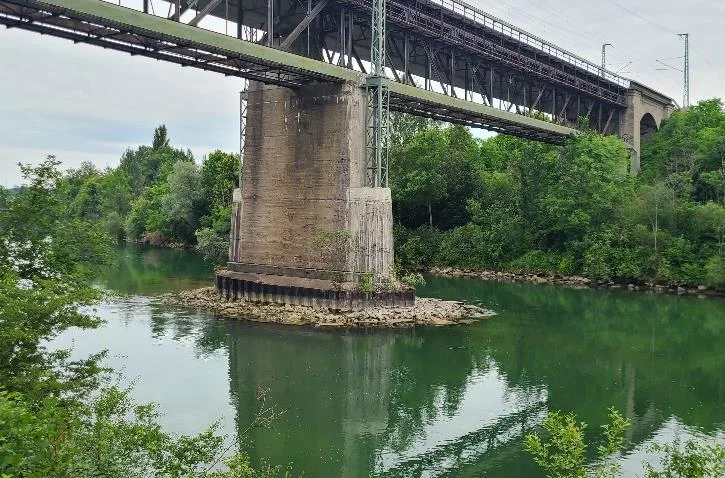

In Southern Germany, surveyors at Ingenieurbüro Saam GmbH were looking for a reliable echo sounder to pair up with their Trimble GNSS equipment. The company specializes in bridge surveying and had tested several basic pole mounted echo sounders in recent years; none had fully met their expectations.
The challenge
After contacting CEE HydroSystems, Dipl.-Ing Michael Saam decided to try out the CEE-LINE™ kit for use on a new electric zero-emissions inflatable boat to be used for hydrographic surveys.
- Trimble Access™: compatibility with the field software was a crucial requirement for the CEE-LINE™.

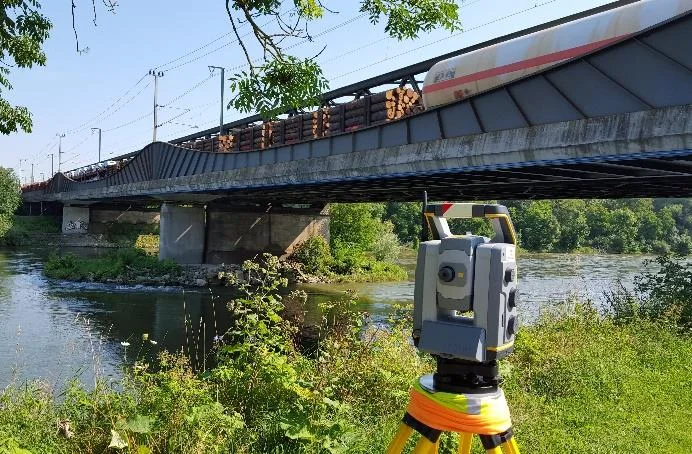

- Total station: while many surveys would be conducted using GNSS positioning, for bridge surveys it was important that operation with a Trimble S7 total station was also possible.
The solution
With the echo sounder connected to the TSC3 data collector, the collector USB port provides power and the data port receives the 10 Hz digital depth soundings. There is no battery to charge and no requirement for pairing devices with Bluetooth.
When in operation, the NMEA echo sounder survey style is selected and continuous topo points are acquired while navigating along the survey route.
The move to newer TSC data collectors in the future, such as TSC7, TSC5 and TSC510, is supported by alternate cable and communication options, to keep Ingenieurbüro Saam GmbH surveying.
The results

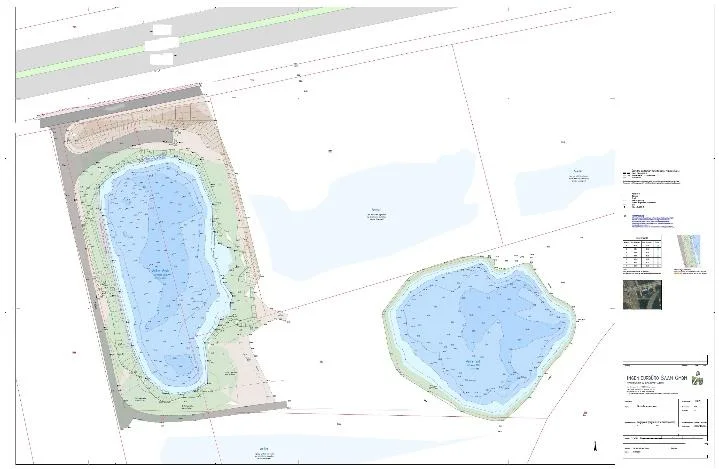

Projects completed include scour surveying / damage of slopes from high water, epoch comparison filling and cutting, and groundwater lakes and river reconstruction.
The main benefit of the CEE-LINE™ was the consistency in readings, especially in very shallow water. Particularly when using a simplified acquisition method based on GNSS software, it is important that the echo sounder is reporting consistent depths not affected by spurious reflections from nearby bridge structures or hard, highly reflective bottom surfaces.
On the echo sounder performance after working on several surveys, Michael said:
“Only a low number of artifacts (mostly when quite shallow), very fine! I’m very happy having finally found a reliable equipment for water hydrographic surveying – thanks to CEE Hydro!”
Dipl.-Ing Michael Saam, Ingenieurbüro Saam GmbH
