CEE-LINE™
Next Generation pole-mounted echo sounder.
CEE-LINE™ brings hydrographic-grade performance to bathymetry projects using land survey data acquisition. Indestructible with exceptional sounding consistency, simply connect the CEE-LINE™ to a data collector, tablet or PC for accurate and trustworthy results.
The CEE-LINE™ represents a next generation approach to GNSS pole-mounted bathymetry surveys. With an indestructible construction and a no-nonsense USB power cable connection to the acquisition data collector, tablet or PC the CEE-LINE™ is a survey-grade echo sounder designed for maximum reliability and exceptional bottom tracking. With no internal battery to worry about, the CEE-LINE™ is always ready to start surveying.
Containing a super-fast modern processor running advanced bottom tracking algorithms, the CEE LINE™ keeps a solid lock on the bottom even in extremely shallow water. With a ping rate up to 10Hz and two frequency channels 33 kHz and 200 kHz available, the CEE LINE™ may equally be used with dedicated hydrographic acquisition software or with GNSS topographic acquisition utilities.
LEARN MORE:
Ultra-Modern Processing Unit
The CEE-LINE™ echo sounder uses a small form factor processor to run complex bottom tracking algorithms while maintaining a high ping rate, maintaining a rock-steady lock on the “real” bottom and ignoring fake signals such as double reflections and unwanted noise. With flexibility to use several different transducers and even operate in dual frequency 33/200 kHz mode, the CEE-LINE™ is a true hydrographic survey quality performer whether used with a GNSS data collector or with an acquisition PC running HYPACK®.
Hydrographic Quality Narrow Beamwidth Transducers
All CEE echo sounders use hydrographic survey-grade analog transducers, including the CEE-LINE™. This means the depth sounder calculations are performed in the CEE-LINE™ processor module and not in the transducer itself as happens in so called “smart” echo sounders.
Flexible Solution for All Data Acquisition Methods
The CEE-LINE™ is designed to operate with hand controllers using either a USB or COM port interface. Simply plug the data / power cable into the acquisition device and bring in the echo sounder depth data. The CEE-LINE™ outputs several formats for trouble-free integration into GNSS continuous topo data recording.
The USB smart cable offers a simple and reliable data and power interface with the CEE-LINE™. No need to worry about charging batteries or dealing with potentially troublesome Bluetooth interface settings, or having to use a potentially unreliable wireless connection. Every time the CEE-LINE™ is plugged in, it is ready to start work. With a low power draw – especially working in shallow water – battery run time on a connected data collector will not decrease excessively even with the acquisition device powering the CEE-LINE™.Rugged and Durable
Manufactured to exceptional quality standards with an encapsulated processor core inside a ceramically coated housing machined from a solid aluminium tube, the CEE-LINE™ will withstand years of field work. Don’t introduce a weak link in your survey equipment – choose the CEE-LINE™.
Minimalist Design
By reducing the connections to just two waterproof LEMO plugs (transducer, and power / data) the CEE-LINE™ has no weak points, less to go wrong, and nothing to break off.
ORDERING OPTIONS:
200 kHz CEE-LINE Echo Sounder
The CEE-LINE™ echo sounder is supplied with a USB power / data cable compatible with a PC, tablet, or data collector. Two transducer options are available separately – 3 degree narrow beamwidth or 9 degree standard beamwidth.
The optional RS232 DB9 cable with a flying lead for DC or USB power allows the CEE-LINE™ to connect using a standard COM port interface.
NOTE: Previous generation CEEDUCER™ and CEEDUCER PRO™ transducers are not compatible with the CEE-LINE™.
33/200 kHz Dual Frequency CEE-LINE Echo Sounder
The CEE-LINE™ is available as a two-channel echo sounder that may be used for surveying in regions with poorly consolidated or disturbed sediment where a 200 kHz-only echo sounder might be inadequate. Using the compact M195 transducer, the CEE-LINE™ offers a lightweight and portable dual frequency system. The CEE-LINE™ advanced power management automatically adjusts the ping rate to ensure enough ping energy is available to track the bottom. Existing 200 kHz-only units may be upgraded to dual frequency with a simple field firmware update.
CEE-LINE Surveying Kit
For convenient installation on small boats, the 200 kHz CEE-LINE™ echo sounder is available in a surveying kit with custom brackets and mounting hardware. Everything needed to start hydrographic surveys with a data collector, tablet, or PC is included in the waterproof Pelican 1560 roller case. See the CEE-LINE KIT kit tab in the product information table below for details.
FIELD APPLICATION VIDEOS:

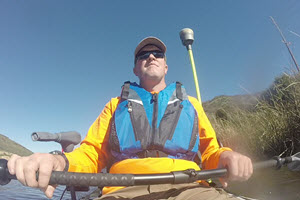

Watch California-based land survey firm GIS Surveyors Inc conduct a small lake survey using the CEE-LINE™ echo sounder and Trimble TSC3 data collector with Trimble R10 GNSS from their motorized kayak.
|
|
|
 |
|
Complete CEE-LINE Kit |
200 kHz Echo Sounder |
200kHz Transducer High quality analog transducer |
Transducer Adapter Secures 200 kHz transducer |
 |
|
 |
 |
| Echo Sounder Pole Clamp Secures CEE-LINE module |
USB Cable Power / data cable |
Transom Mount Rugged mounting bracket |
GPS Poles 2ft extensions |
 |
 |
 |
|
| Thread Adapter Male to Male 5/8″ |
GPS Pole Retaining Insert Locks pole into bracket |
* Transducer Installed Assembled transducer mount |
| Parameter | General Surveys | Engineering Surveys | Dual Frequency |
| Frequency: | 200kHz | 200kHz | 33 / 200 kHz |
| Beam Width @-3dB: | 9 deg | 3 deg | 26 deg / 9 deg |
| RMS Power | 500 W | 3 kW | 500W / 500W |
| Q: | 2 | 6.5 | N/A |
| Cable Length | 0.3-9m (1-30 ft) | 0.3-10 m (1-33 ft) | 0.3-11 m (1-36ft) |
| Weight | 1.3 kg (3 lbs) | 5.5 kg (11.6 lbs) | 3.6 kg (8lbs) |
| Housing Material | Stainless Steel | Stainless Steel | Cast Urethane |
| Acoustic Window | Urethane | Urethane | Urethane |
|
Data Collector TSC2 / TSC3 / TSC7 or Tablet Several data output formats are available on the CEE-LINE™ allowing depth data to be brought into GNSS measurement software to record a final bottom elevation. Well-established Trimble configuration options are easily added to the data collector in order to start work with the CEE-LINE™. The USB port or DB9 COM port may be used as desired, with the CEE HydroSystems “Smart USB” cable handling data and power in one for field tablets. Using a field tablet PC further enhances the bathymetric data collection process using the CEE-LINE™, enabling the simultaneous CEE-LINE CONNECT software to fine-tune the echo sounder sonic characteristics. For data collectors, a split USB / COM cable is used. |
|
 |
Connection to TSC2 or TSC3 Data Collectors The split USB / RS232 cable is used to supply power to the CEE-LINE™ from the data collector and to allow the echo sounder data to be accessed through the standard COM port. |
 |
Instruction Quick Start Guide - TSC3 Learn how to use the CEE-LINE™ with the Trimble TSC3 data collector in the Trimble Access environment and the Geometius BathySurvey hydrographic App. |
 |
Instruction Quick Start Guide - TSC7 The smart USB Cable is used to supply power to the CEE-LINE™ from the data collector and to receive echo sounder data. The CEE-LINE™ CONNECT utility may be installed on the TSC7 for complete control. |
|
Data Collector TSC5 Bluetooth Operating the CEE-LINE™ with the Trimble TSC5 or other Bluetooth devices is made possible using the SD1000 Bluetooth plug-in module. Simply pair the data collector with the SD1000 and bring in precision sounding data to your acquisition software. |
|
 |
Connection to TSC5 Data Collector The split USB / RS232 cable may be used to supply power to the CEE-LINE™ from the data collector by using the USB-C port with the Trimble adapter cable. Alternatively, a USB power pack may be used for a fully wireless connection to the TSC5. |
 |
Instruction Quick Start Guide - TSC5 Learn how to set up the Bluetooth connection and acquire data with the CEE-LINE™ using the Trimble TSC5 data collector in the Trimble Access environment. |
 |
Connection to CS35 Tablet The CEE-LINE™ output may be configured to interface with the Leica CS35 tablet using Captivate software. Power for the CEE-LINE™ is provided by the 5V USB cable. The Smart USB cable may be used when connecting the CEE-LINE™ to a tablet PC running a full Windows operating system. The USB port provides the 5V power to the echo sounder and generates a virtual COM port that may be accessed by the acquisition software. |
|
Connection to CS15 / 20 Data Collectors The CEE-LINE™ output may be configured to interface with the Leica CS15 and CS20 data collectors using Viva or Captivate software. The data connection may be through the LEMO or 9 pin COM port as fitted. |
External Power Option For data collectors that do not output 5V on the USB port, a separate rechargeable USB power pack can be used with the CEE-LINE™. |
Data Collector FC500 or FC5000 Tablet
The CEE-LINE™ may be used with Topcon data collectors running MAGNET Field. Power for the CEE-LINE™ is provided by the 5V USB port, and echo sounding data is passed through the standard COM port over a split USB / 9 pin serial cable or through the standard Smart USB cable.
 |
Connection to Topcon Data Collectors and FC5000 Tablet There are two cable options available for the echo sounder interface to Topcon devices. A split “Y” cable with a generic 9 pin DB9 female and standard USB connector may be used, with power supplied by the data collector’s USB port. Alternatively, for tablet PCs running a full Windows operating system, the Smart USB cable may be used instead. This cable automatically generates a COM port when plugged into the device, allowing both power and data to be passed over a single USB cable. Use of the Smart USB cable eliminates the requirement for a physical 9 pin COM port. |
|
Setup in MAGNET Field The CEE-LINE™ is added as a peripheral device, with the device interface through the appropriate COM port. Serial data communication parameters should be set to match the CEE-LINE™ output configuration – usually 9600 baud. The GENERIC NMEA echo sounder model is selected to match the echo sounder output, which should be NMEA $SDDBT or $SDDBS. If DBS (Depth Below Surface) output is selected, the draft entered in the CEE-LINE™ configuration will be incorporated into the depth measurement. If DBT (Depth Below Transducer) is selected, any draft entry will be ignored. |
 |
|
Carlson SurvCE Data Collector Acquisition Software The CEE-LINE™ echo sounder may be used with Carlson software running on GNSS data collectors for a simplified bathymetry survey approach compared to traditional hydrographic acquisition software. The serial RS232 data output from the echo sounder is treated as a peripheral input, and depth data are automatically applied to measured GNSS elevations to give a resultant underwater bottom elevation. |
|
 |
Learn how to configure the CEE-LINE™ echo sounder and Carlson SurvCE software to allow incorporation of CEE-LINE™ depths into GNSS point elevations. |
|
Introduction to Hydrographic Surveying with the CEE LINE™ and GNSS Data Collectors The CEE LINE™ echo sounder is often used with GNSS data collectors in a simplified hydrographic acquisition setup, with operators unfamiliar with hydrographic surveying processes. This overview explains some key concepts to understand before starting out. |
|
 |
Learn the key concepts of hydrographic surveying when using the CEE LINE™ with a GNSS data collector. |
 |
Learn about the Pros and Cons of using a simplified CEE LINE™ approach with a data collector versus a traditional Hydrographic Survey approach with the CEE ECHO™ and acquisition software. |
Advanced Setup and Operation Utility
Monitor and modify the operation of the CEE-LINE™ echo sounder on the fly with the CEE-LINE CONNECT utility. Adjust bottom tracking and sonic characteristics, maximum depth and sound velocity for a resilient hydrographic solution.
– Is it really indestructible?
Nothing is indestructible. But this is as close as you can get with an echo sounder.
– What is the maximum depth achievable?
100m with either 33 kHz or 200 kHz frequencies.
– How do I connect the CEE-LINE™?
There are three options:
1. SMART USB. Single cable providing power and data connection.
2. SPLIT RS232 FLYING LEAD. Y power / data cable terminates in a standard serial DB9 connector for data and a pigtail DC power cable.
3. SPLIT RS232 USB. Power / data cable terminates in a standard serial DB9 connector for data and a USB connector supplying 5V power from any USB device
– How is it powered?
Use any 12-24V DC supply or 5V USB.
– What is the data output?
The CEE-LINE™ can output common formats data such as DESO25, Odom SBT / DBT, NMEA0183, Sonarmite old, Sonarmite new.
– How is the echo sounder operated?
Just plug in and it starts pinging. The CEE-LINE™ is designed to need a minimum of adjustment.
– Do I need an acquisition device?
Yes. The CEE-LINE™ does not log data.
– Can I use my existing analog transducer?
Possibly. We can supply patch cables for some connector types.
– Can I change the settings if needed?
Yes. Using the CEE-LINE CONNECT interface software portal or BathySurvey App for Trimble.
– Can I enter sound velocity (SV)?
Yes. This is entered using the software portal.
– Is there a Bluetooth data output?
No. The CEE-LINE™ is designed for cabled operation.
– Can the CEE-LINE™ be used with CEEDUCER™ and CEEDUCER PRO™ echo sounders?
Yes. The CEE LINE™ can replace and upgrade the smart transducers used on the legacy CEE HydroSystems echo sounders. The output of the CEE-LINE™ is connected to the transducer input of the control box. The CEE-LINE™ CANNOT be used with CEEDUCER™ transducers.
– Can the CEE-LINE™ take in GPS?
No. The CEE-LINE™ is a standalone echo sounder.
